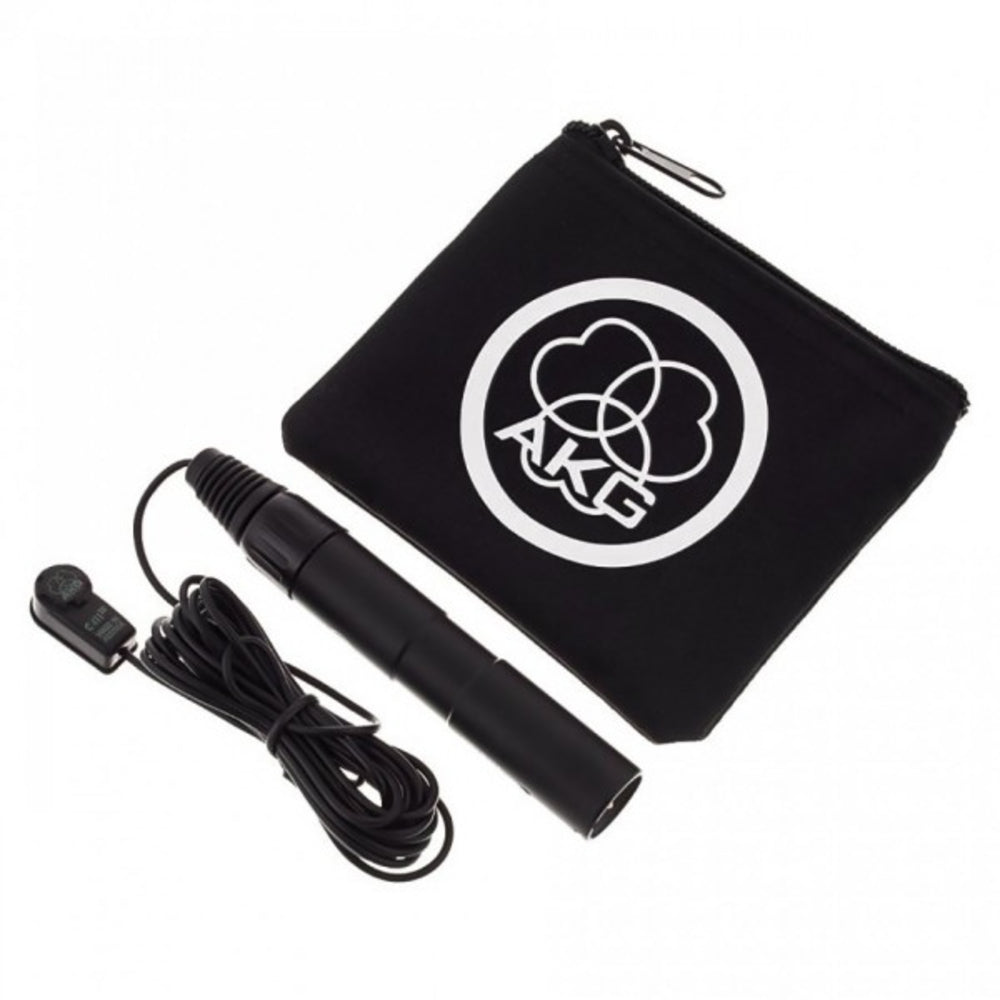

AKG C411 PP Miniature Condenser Pickup Microphone to 3-Pin XLR Male Cable 10' - Matte Black

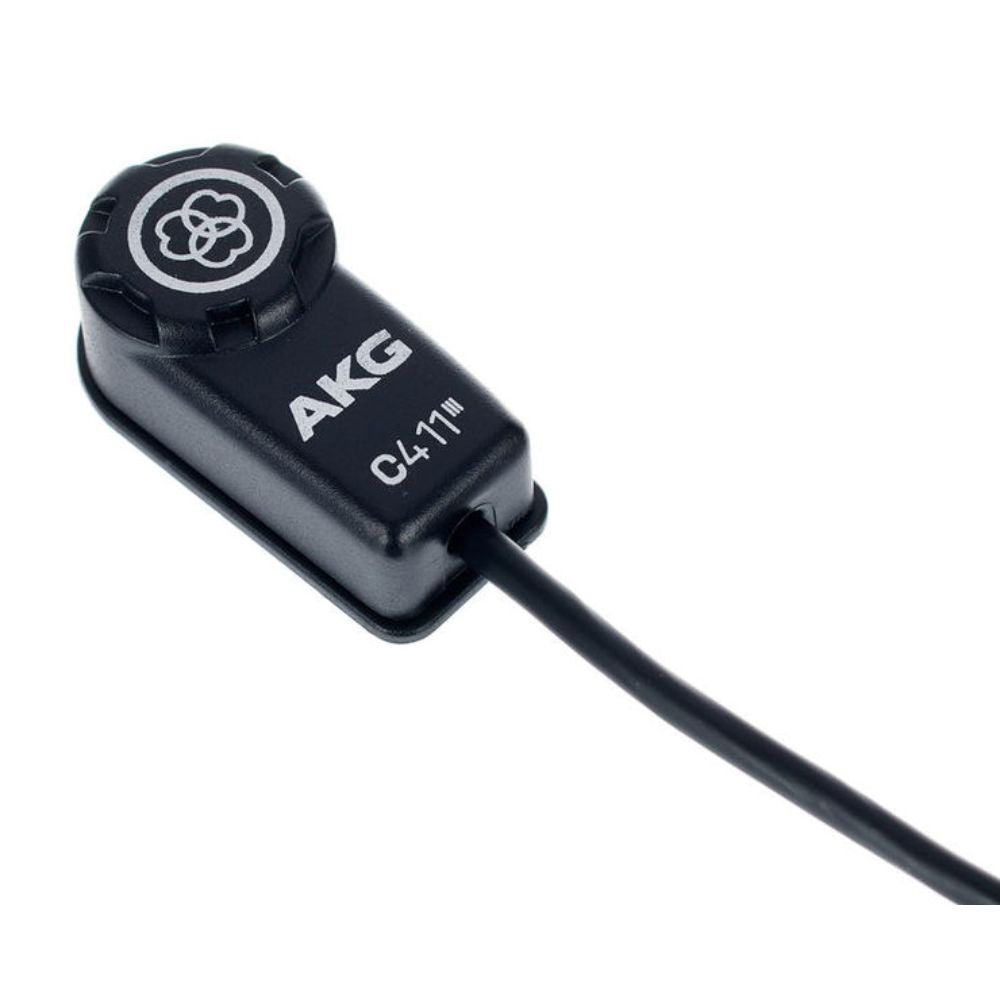

The C411 is a miniature vibration pickup for acoustic guitar, mandolin, violin and most other string instruments. Its integrated condenser capsule will reproduce the sound of the instrument clearly and without coloration. The C411 ultralight pickup (18g/0.6oz) can be easily attached on or near the bridge with the included nonmarking, solvent-free adhesive pad without changing the balance of the instrument. The C411 is available in two versions. The C411 PP features a MPAV standard XLR connector while the C411 L provides a professional three-pin mini XLR connector that fits the body-pack transmitters of all AKG wireless microphone systems.

General Specifications

Type
Pre-polarized condenser transducer
Polar Pattern
Figure of eight
Audio frequency bandwidth
10 - 18000 Hz
Sensitivity
2 mV/Pa
Electrical impedance
200 Ohms
Recommended load impedance
1000 Ohms
Max. SPL for 1%/3% THD
96 dB / 103 dB
Current consumption
approx. 2.2 mA

Dimensions

Length
9.7 mm
Width
14.2 mm
Height
26.7 mm
Net Weight
225 g (8 oz.)
Cable length
3 m (10 ft.)

Design

Body
plastic
Finish
matte black

Audio Output

Type
MPAV standard XLR connector
Gender
Female
Contacts
3-pin

Powering Interface

Voltage
9 to 52 V
Current
2 mA

Application

Live Instrument

Instrument

Piano / Strings
