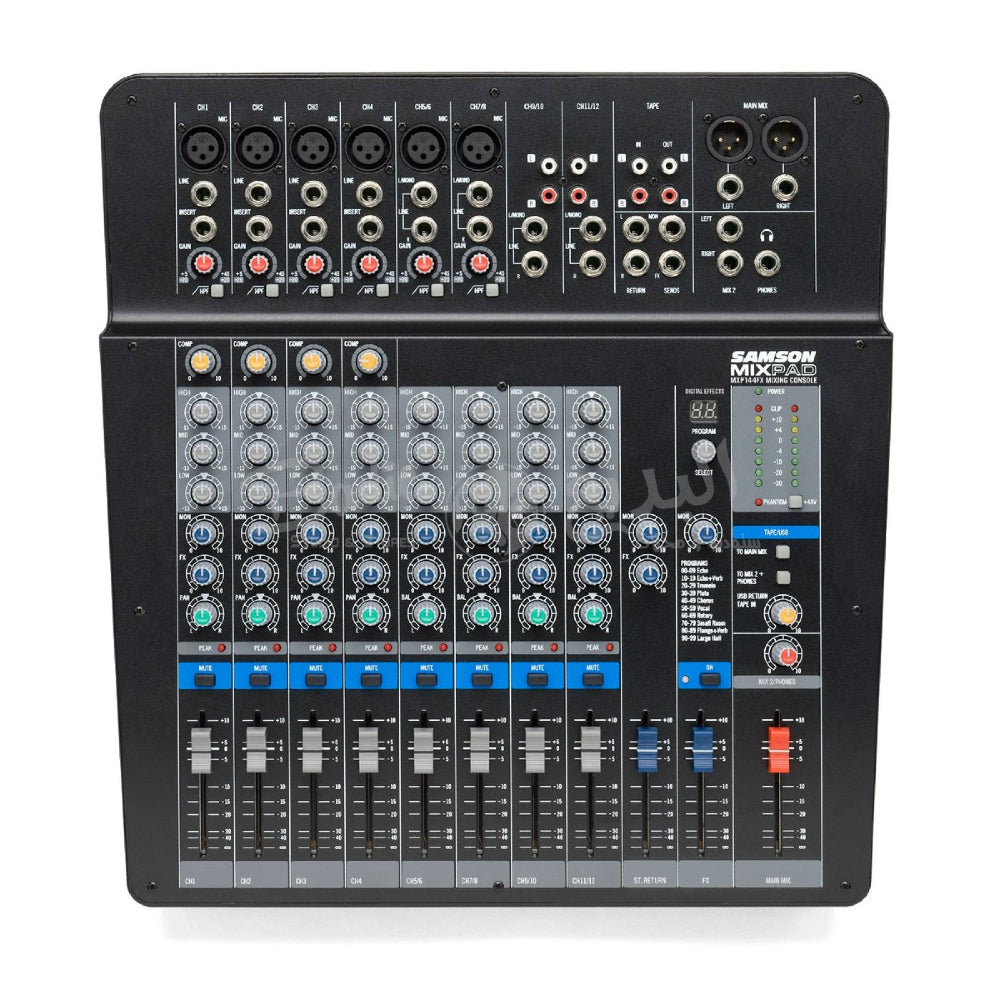

Samson Mixpad MXP144FX 14-Channel Analog Stereo Mixer with Effects and USB

Great sound for stage and studio

The Samson MixPad MXP144FX gives you the connectivity you need for most small-format mixing applications. Six mic preamps are ready for your microphones, with phantom power and a highpass filter for each input. And the first four channels have an easy one-knob compressor, perfect for vocals or drums. A total of four stereo line inputs and four mono line inputs makes the MixPad MXP144FX a solid solution as a mixer for your keyboards or synthesizers.

High quality built-in effects for a polished sound

You can choose from 100 digital effects with 24-bit resolution on the MixPad MXP144FX. These studio-quality effects cover delay, reverb, tremolo, chorus, and more. Send as much or as little of each channel to the effects processor, then blend in the effects return with your main mix - easy!

Built-in USB for recording

Whether you're rehearsing with your band, mixing live sound, or creating broadcast material, the MixPad MXP144FX makes it easy to record your mix. Just connect the USB output to your computer, and record the stereo mix directly in your DAW. You can also use the USB connection to mix in a stereo signal from your DAW, making it easy to integrate computer audio with your live mix.

Type: Analog

Channels: 12

Computer Connectivity: USB (2 x 2)

Faders: 10 x 60mm

Inputs - Mic Preamps: 6 x XLR

Phantom Power: 12

Inputs - Line: 12 x TRS, 4 x RCA

Inputs - Other: 2 x RCA (Tape)

Outputs - Main: 2 x XLR, 2 x TRS

Outputs - Other: 2 x RCA (Tape)

Aux Sends: 1 x Pre, 1 x Post

Send/Return I/O: 2 x TRS, 2 x TRS

Channel Inserts: Yes (4)

Headphones: 1 x 1/4"

USB: 1 x Type B

EQ Bands: 3-Band (High, Mid, Low), High-pass Filter

Effects: Yes

Height: 3.9"

Width: 15.3"

Depth: 14.5"

Weight: 8.3 lbs.
