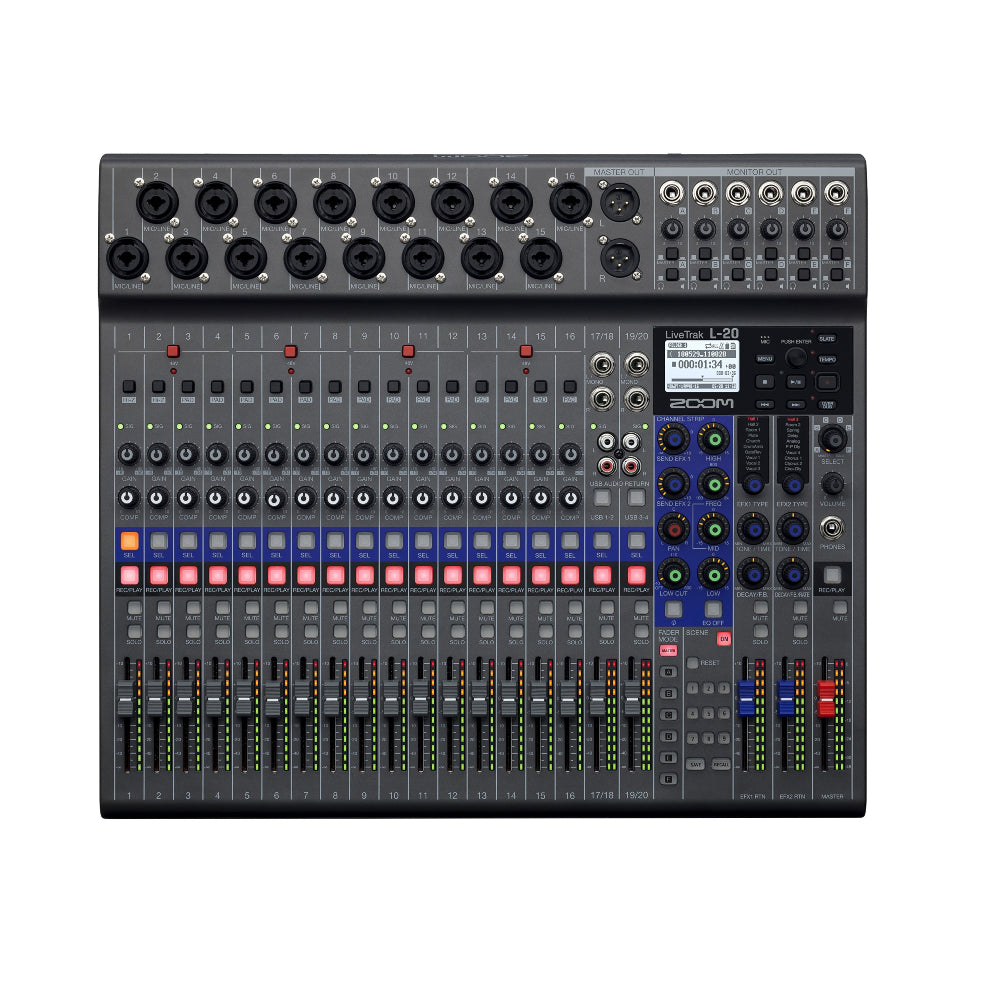

Zoom LiveTrak L20 20-channel Digital Mixer and Multitrack Recorder

20-channel Digital Mixer with 24-bit/96kHz 22-track Recorder, 6 Monitor Outputs, 3-band EQ, 20 Built-in Effects, and 22-in/4-out USB Audio Interface - Mac/PC/iOS

The highly flexible Zoom LiveTrak L-20 is a 20-input digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The mixer features 16 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and two send FX for sending signals to the 20 built-in high-quality effects processor with two dedicated EFX Return channels.

20-channel digital mixer (16 mono/2 stereo)

22-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning to USB Camera Adapter is required for iOS)

22-track 24-bit/96kHz recording directly to an SD card

Record up to 48kHz to a computer and an SD card simultaneously

Create customizable, savable headphone mixes for up to 6 band members

Complete your entire project on the mixer, or transfer all 22 discrete tracks to your DAW for editing and mixing

16 combo jacks accommodate both XLR and 1/4" connectors

16 great-sounding mic preamps with phantom power and +60dB of gain

Channels 1 and 2 offer hi-Z inputs for your electric guitar or bass

Channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices

Each channel features a 3-band mid-parametric EQ and 20 built-in effects

Channels 1–16 include a dedicated compressor for controlling dynamics

Channels 3–16 have a -26dB Pad for capturing loud sources

Clear 12-segment LED metering for keeping an eye on your levels

Save up to 9 scenes and recall your custom settings automatically

Record automatically when the Master fader detects a certain dB level

Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time

Built-in slate mic for recording comments or talkback

Onboard metronome for keeping the band in sync

What's in the Box

Included with the L-20

LiveTrak L-20

AD-19 AC Adapter

USB 2.0 Cable

Quick Guide

Optional Accessories

RKL-12 Rack Mount Adapter

BTA-1 Bluetooth Adapter

FS-01 Momentary Footswitch

CBL-20 Carrying Bag
