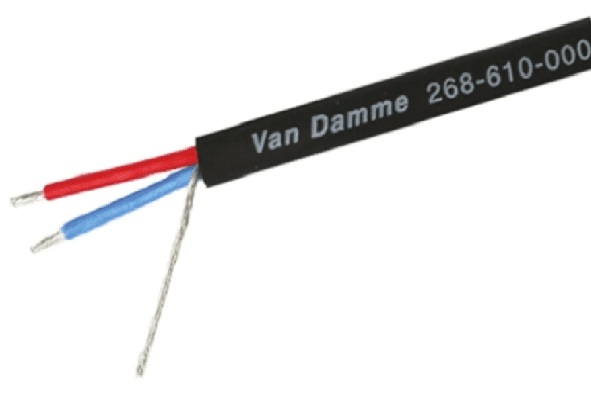

Van Damme 268-610-000 Smart Control 1 Pair DMX Cables - Price Per Meter

ID: VA*268-610-000

by Badie Studio & S-alnasr Branch

Brand: Van dammeVisit brand store →

QAR 12

Price from the seller's website · checked 27 Oct 2026. For bulk prices, ask the seller for a quote.

Description

Van Damme DMX512 cables are robust, tour grade PVC jacketed precision foil screened cables for the transmission of the DMX512 lighting control protocol. 22 AWG conductors with foamed polyethylene insulation ensures accurate data transfer over longer distances. Available as a 1 pair in 3 colours, and 2 pair in black only.

Conductors
16 x 0.20 mm tinned oxygen-free copper

Conductor size
16 x 0.20 mm, 0.52 mm 2/, AWG 20

Insulation
Foamed polyethylene

Screen type
24 µm Aluminium/Polyester Foil >150% coverage

Pair colours

1 pair
Red/Blue

2 pair
Red/Blue, Green/White

Screen
Aluminium/Polyester Foil >125% coverage

Drain wire
16 x 0.20 mm tinned oxygen-free copper

Jacket material
Flexible PVC/Neoprene composite

Overall diameter

1 Pair
6.00 ± 0.30 mm
