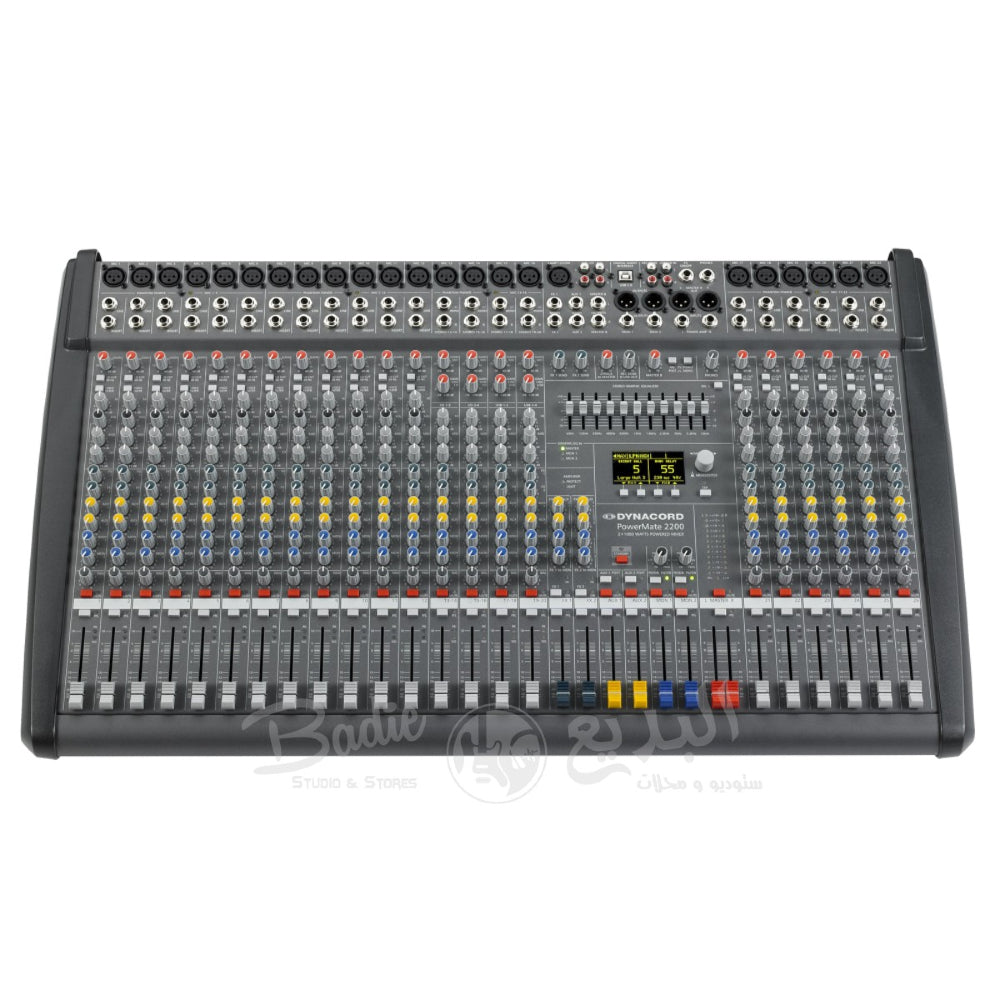

Dynacord PowerMate PM2200-3 Poweredmixer, 2x 1000 W / 4 Ohm

Third-generation success story: the PowerMate3! The current PowerMate generation features a multitude of innovations and optimizations. Despite a clear reduction in weight, it offers considerable gains in terms of both power amplifier output and features, as well as being more compact than ever before. Due to the greater size of the PowerMate 2200-3, a flight-case solution is recommended (available as a further option is a dust cover).

powermixer with 2x 1000 watt RMS / 4 Ohm power

18 MIC/LINE inputs, 4 stereo MIC/LINE inputs

6 AUX-busses

30% reduction in weight, more compact dimensions and >50% less energy consumption compared to the previous models

editable effects

USB digital audio interface + MIDI

innovative transport and protection solution

the XLR microphone input is equipped with an extremely high quality, ultra-low noise, discrete preamp.

the +48V phantom power for condenser microphones can be switched in groups of six.

line input and channel insert are implemented as jack sockets gain can be controlled in the range 0-60 dB.

the switchable Lo Cut filter (80Hz, 18dB/oct) serves to eliminate low-frequency noise

a very typical DYNACORD feature is the asymmetrical Voicing Filter by means of which, if desired, the voice can be powerfully emphasized in the mix.

3-band semi-parametric equalizer makes it possible even for unpractised users to perform the requisite corrections swiftly and intuitively.

possible to mute each input channel individually and/or listen to its pre-fader signal

Signal Present and Peak LED for level control channel faders are dust-protected and offer not only excellent crosstalk attenuation but also a practice-optimized control characteristic.

all potentiometers and faders are high-quality components from ALPS.

2 of the 4 stereo inputs of each model are additionally equipped with cinch (RCA) sockets switched in parallel for CD or MP3 players.

2 other stereo inputs receive in addition the four channels of the digital audio interface USB 1-2 and USB 3-4

separate gain controls are provided for the stereo Line and Mic inputs to permit them to be used in parallel if desired.

3-band tone controls are provided and a Balance control replaces the PAN control found in the mono channel strips.

11-band stereo EQ can be routed to the Master channels or else to either or both of the Monitor Sends according to choice.

4-pin XLR socket is provided for the connection of a standard 12V/5W gooseneck lamp.

USB 2.0 port serves as a digital audio interface between the PowerMate and a PC or Mac.

the PowerMate also offers a fully-featured PC MIDI

2 integrated stereo multieffects processors that work independently of one another, each offering 100 effects algorithms optimized for live performance, the most important parameters of which are editable.

dimensions (WxHxD): 818,5 x 155 x 498,5 mm

weight: 18 kg

Manufacturer: Dynacord

Microphone Channels: 16

Stereo Channels: 4

RMS Output in Watt @ 4Ohm: 2x1000

Signal Processing: Analog

Power Mixer: Yes

Integrated Effects Processor: Yes

AUX Channels: 6

EQs: 3-Band

Low Cut: Yes

19"-capable: No

Phantom Power: Yes

Integrated Power Adapter: Yes

USB Input: Yes

Talkback: No

Integrated Audio Interface: Yes

Parametric Mid EQ: Yes

RJ45 Interface / Network: No

APP control possible: No

Weight (kg): 18
