Neutrik NBB75FG BNC 3G Female panel, grounded, double-sided
ID: NE*NBB75FG
by Badie Studio & S-alnasr Branch
Brand: NeutrikVisit brand store →
QAR 35
Price from the seller's website · checked 27 Oct 2026. For bulk prices, ask the seller for a quote.
Description

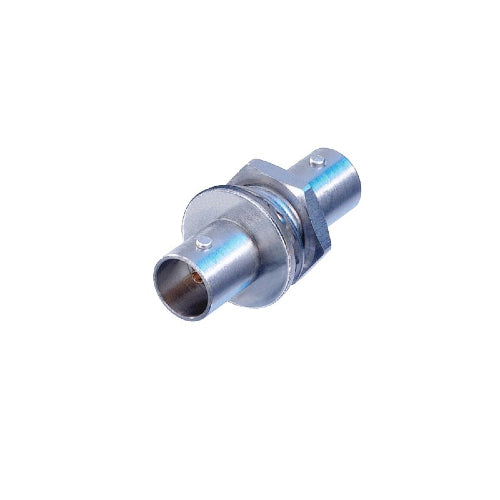

The NBB75FG from Neutrik is a feedthrough grounded BNC jack for panel mount. It offers a true 75ohm design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.
HD, SDI, video, AES/EBU, composite, YUV, RGB, RGBH, RGBHV signal types
Brass with gold plated cage type centre contacts, PTFE insert and polyacetal (POM) shell
Front mounting
True 75ohm design meets the stringent HD requirement
