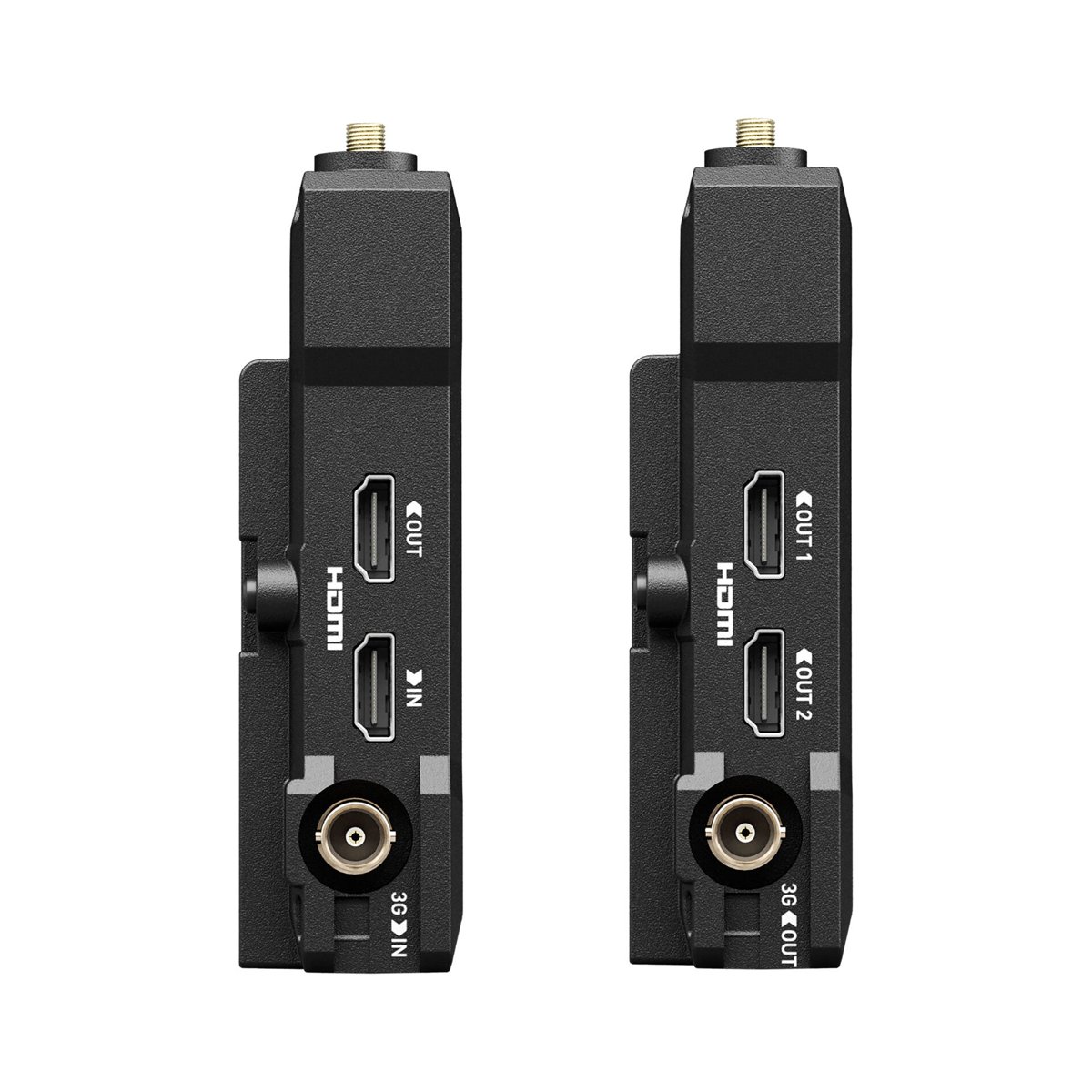

Atomos TX 4K/HD Wireless Video Transmitter & Receiver Set-ATOMTXRX01

Model-ATOMTXRX01
Specification
Details
Maximum HDMI resolution
4K at 30 fps
Maximum SDI resolution
1080p at 60 fps
Wireless frequency
5GHz
Wireless channels
9 channels
Maximum transmission range
Up to 300m line-of-sight
Latency
Approximately 60ms
TX connections
1 × 3G-SDI input, 1 × HDMI input and 1 × HDMI loop output
RX connections
1 × 3G-SDI output and 2 × HDMI outputs
Audio format
Dual-channel PCM
Compatible batteries
NP-F550, NP-F750 and NP-F970
Built-in battery
No
DC input
9–16V
USB-C power
Supported
Operating power
4W per unit
Display resolution
128 × 64 pixels
Construction
Aluminium alloy
Mounting
