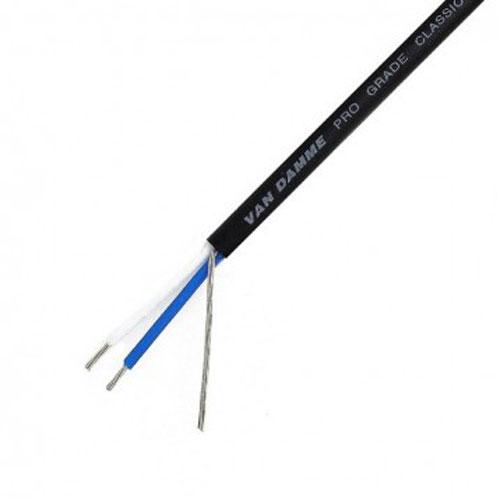

Van Damme 268-001-000 Pro Grade Classic XKE 1 pair install Cable - Price Per Meter

Van Damme Pro Grade Classic XKE 1 pair install cable is a foil screened twisted pair for installation and rack wiring. Tough, flexible and very easy to prepare as the foil screen is bonded to the outer jacket, this cable type is also useful for ‘bodge leads’, adaptor cables and multipin breakouts where individual tails need to be colour identified or are to be permanently installed.

Conductors

1 x 0.20 mm silver plated oxygen-free copper

6 x 0.20 mm tinned ultra-pure oxygen-free copper

Conductor size
7 x 0.20 mm, 0.22 mm 2 , AWG 24/7

Insulation
Cross-linked polyethylene

Screen type
Aluminium Polyester foil, > 150% coverage

Drain wire
7 x 0.20 mm tinned ultra-pure oxygen-free copper

Jacket material
Flexible PVC/Neoprene composite

Overall diameter
3.50 ± 0.10 mm

Bend radius

10 x overall diameter
