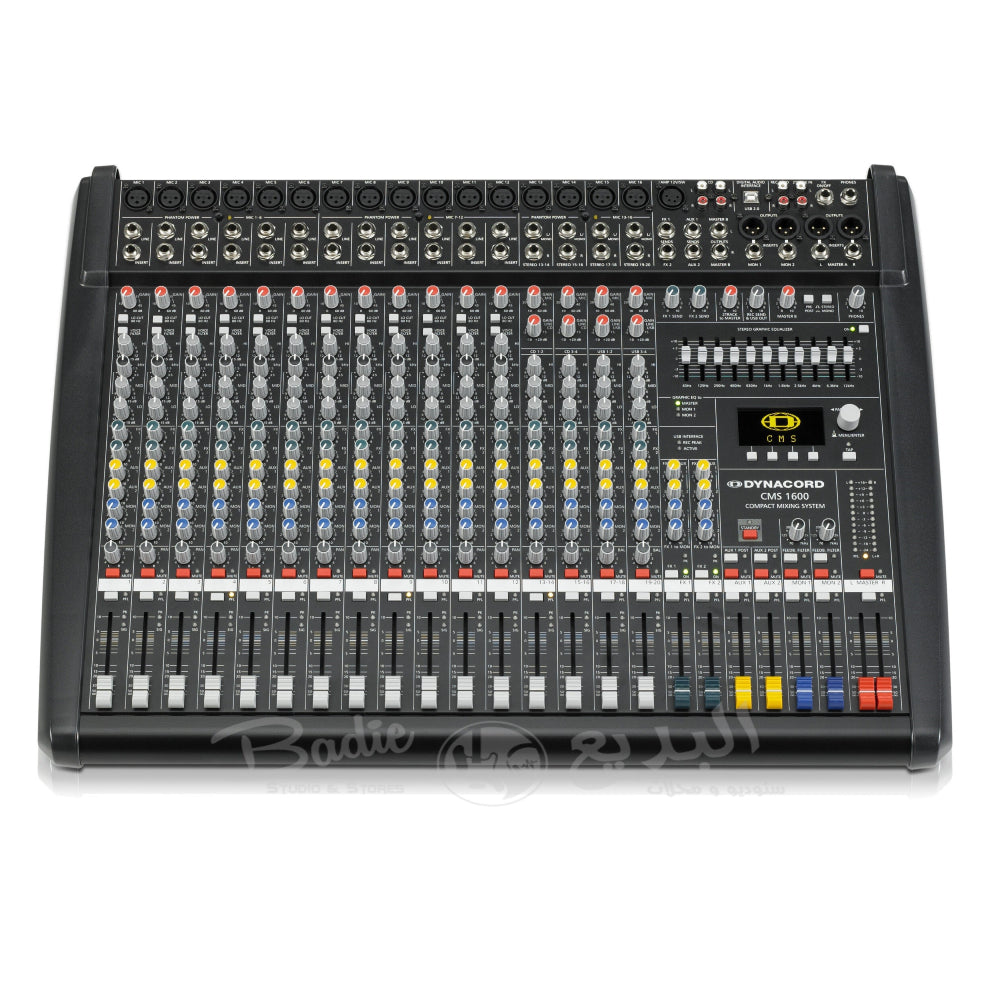

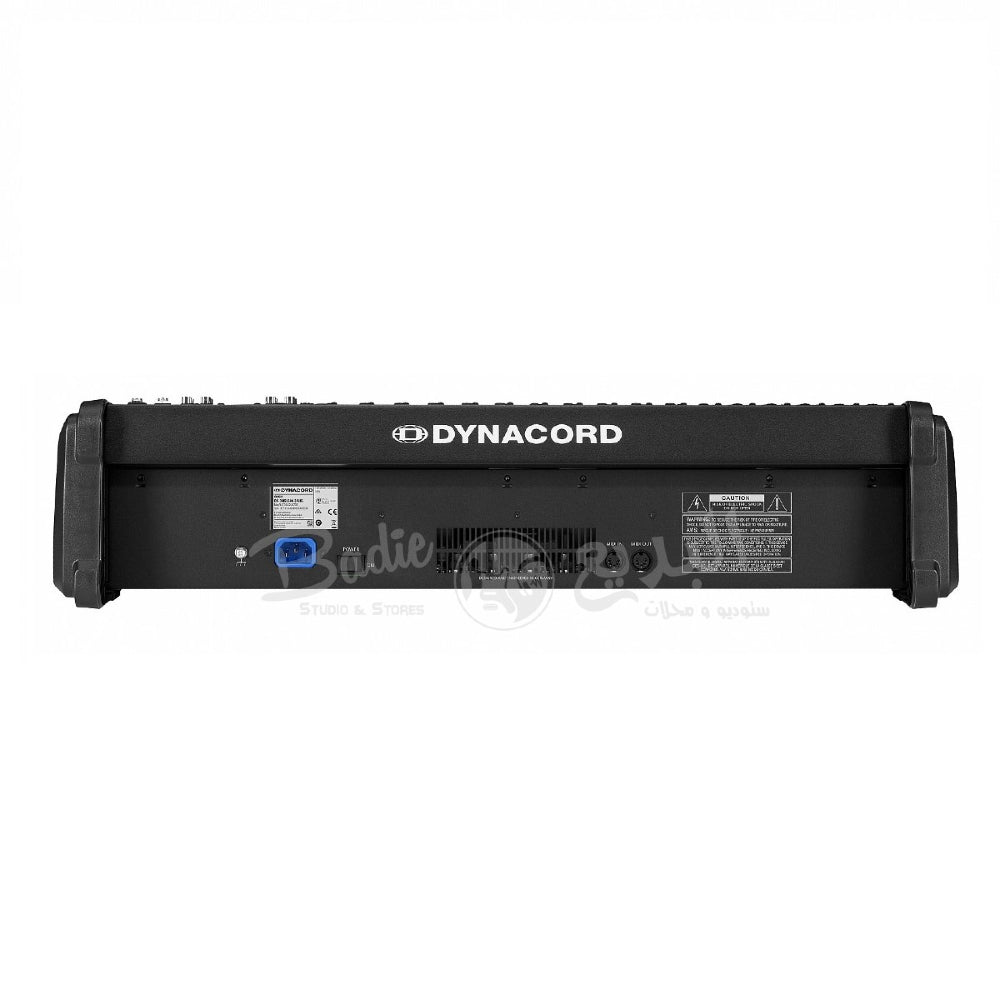

Dynacord CMS1600-3 Compact 16-Channel Mixer

The CMS 1600-3 Compact 16-Channel Mixer from Dynacord features 12 mic/line and four mic/stereo-line channels. There are six auxiliary ports, two with pre, two with post, and two with pre/post switchable faders. Two effects processors offer 100 factory presets and a TAP key allows precise setting of delay times. Each preset can be edited and stored to 20 user memories.

The built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz. An additional MIDI interface allows integration of instruments such as keyboards. The 11-band stereo graphic equalizer can be routed to master or monitor channels.

Channels
12 x Mic/Line
4 x Mic/Stereo Line

Auxiliary
2 x Pre (MON)
2 x Post (FX)
2 x Pre/Post Switchable (AUX)

Gain
Microphone (Mono/Stereo): 0 to 60 dB / 10 to 60 dB
Line/CD/USB (Stereo): -10 to 20 dB

Maximum THD @ 1kHz
Microphone Input to Master A L/R Outputs, +16 dBu, Typical: < 0.005%
Frequency Response, -3 dB, ref. 1 kHz, any input to any Mixer Output: 15 Hz to 70 kHz

Crosstalk @ 1 kHz
Fader and FX/AUX/MON-Send Attenuation: > 85 dB
Channel-to-Channel: < -80 dB
CMRR, Microphone Input:> 80 dB
Input Sensitivity (All Level Controls in Max. Position Microphone / Line, Mono / Line, Stereo / CD, Stereo): -74 dBu (155 µV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV)

Maximum Level
Microphone Inputs: 21 dBu
Mono Line Inputs / Stereo Line Inputs: 41 dBu / 30 dBu
All Other Inputs: 22 dBu
All Other Outputs: 22 dBu

Input Impedances
Microphone / Insert Return: 2 Kilohms / > 3.3 Kilohms
2-Track Return and CD Input: 10 Kilohms
All Other Inputs: > 15 Kilohms

Output Impedances
Headphones: 47 Ohms
All Other Outputs: 75 Ohms

Equivalent Input Noise
Microphone Input, A-Weighted, 150 Ohms, -130 dBu
Noise, Channel Inputs to Master A L/R Outputs, A-Weighted
Master Fader Down: -97 dBu
Master Fader 0 dB, Channel Fader Down: -89 dBu
Master Fader 0 dB, Channel Fader 0 dB, Channel Gain Unity: -82 dBu

Equalization
LO Shelving: ± 15 dB / 60 Hz
MID Peaking, Mono Inputs: ± 15 dB / 100 Hz to 8 kHz
MID Peaking, Stereo Inputs: ± 12 dB / 2.4 kHz
HI Shelving: ± 15 dB / 12 kHz
Master EQ 11-Band (63, 125, 250, 400, 630, 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz, 12 kHz): ± 10 dB / Q = 1.5 to 2.5

Power Consumption
50 W without Lamp, 55 W with Lamp

Filter
LO-CUT, Mono Inputs: f = 80 Hz, 18 dB/oct.
Voice Filter, Mono Inputs: Switchable
Feedback Filter, MON 1/2: 70 Hz to 7 kHz, Notch, -9 dB

Effects
Type, Effects Presets: Dual Stereo 24/48-Bit Multi-Effects Processors, 100 Factory + 20 User, Tap-Delay,
Remote Control Footswitch, MIDI
Display: 128 x 64 pixels, OLED

Digital Audio
Channels: 4 Inputs / 4 Outputs
AD/DA Conversion, Sampling Rate 24-Bit, 44.1 / 48 / 88.2 / 96 kHz
PC Interface: USB 2.0, Female Type-B
MIDI Interface: 5-Pin DIN Connector, Input / Output

Mixer Output Connections
MON 1, MON 2, Master A (Relay Controlled)

Power Supply
Switching Mode µC Controlled: Mains Over/Undervoltage, High Temperature

Phantom Power
48 VDC (Switchable in Groups)

Power Requirements
100 to 240 VAC, 50/60 Hz (SMPS with Auto Range Mains Input)

Safety Class
Not Specified by Manufacturer

Ambient Temperature
Not Specified by Manufacturer

Dimensions
26.1 x 6.1 x 19.6" / 663.5 x 155 x 498.5 mm

Weight
26.5 lb / 12 kg
