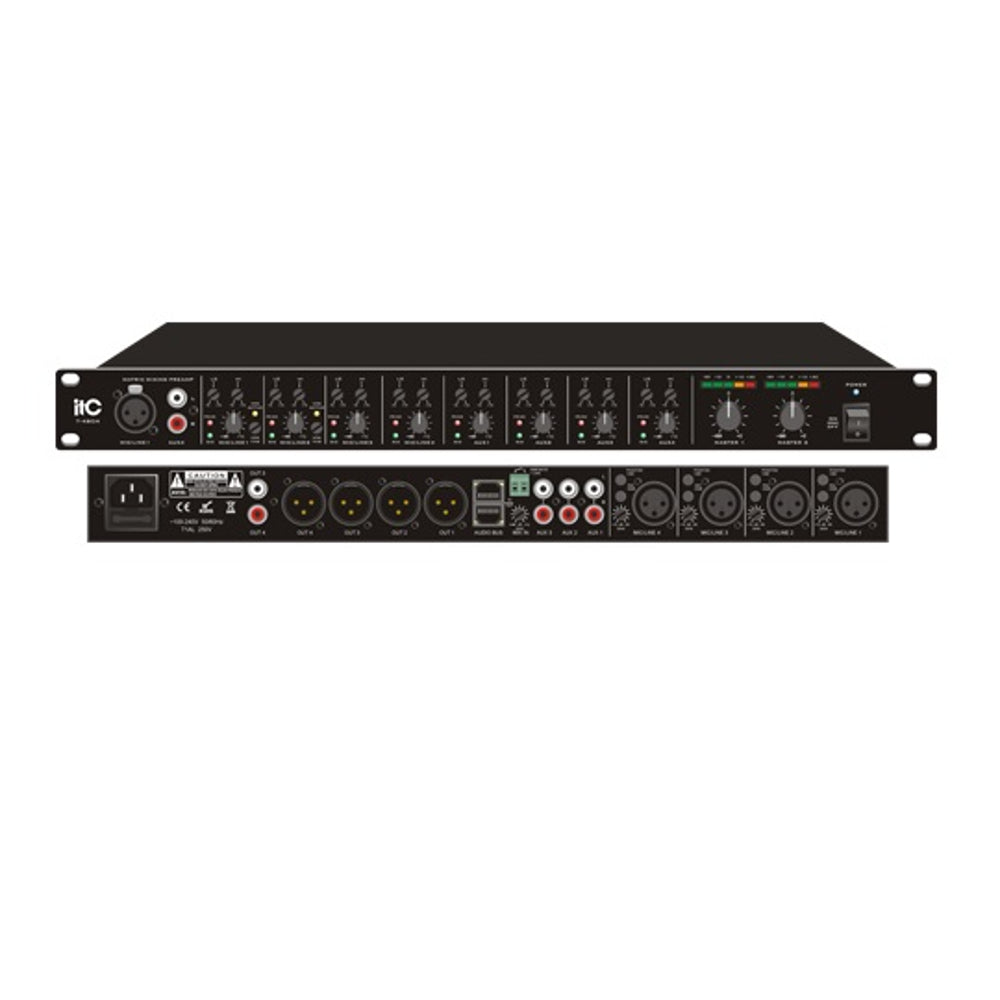

itc T-4S04 Stereo (8 Inputs & 4 Outputs) Mixer Pre- Amp

• Standard machine cabinet type 1 U height design, black aluminuim oxide draw bench panel.

• 4 MIC/LINE XLR balanced inputs, providing 48V phantom power switch.

• 4 AUX accessory unbalanced inputs, there are 2 RCA in each channel, and one of them is on the panel.

• Each channel is equipped with volume control and tone control.

• Signal/peak value LED light monitors the input level of every channel.

• MIC/LINE1,MIC/LINE2 internally installed low cut.

• Each input channel can be assigned to output channel freely through jumper.

• The panel provides one channel of MIC/LINE input in addition,

parallel connected with MIC/LINE1.

• MIC1/MIC2 priority control, and adjustable threshold value.

• 4 XLR balanced outputs, in parallel connection with 2 channels of RCA

unbalanced outputs.

• 4 RJ45 bus balanced inputs, whose volume is adjustable, and can be mixed correspondingly into 4 channel XLR outputs.

• 4s of RJ45 bus balanced outputs mixed signal.

• Output level indicate.

• External mute controls for all channels.

• Switching power supply provides electricity.
