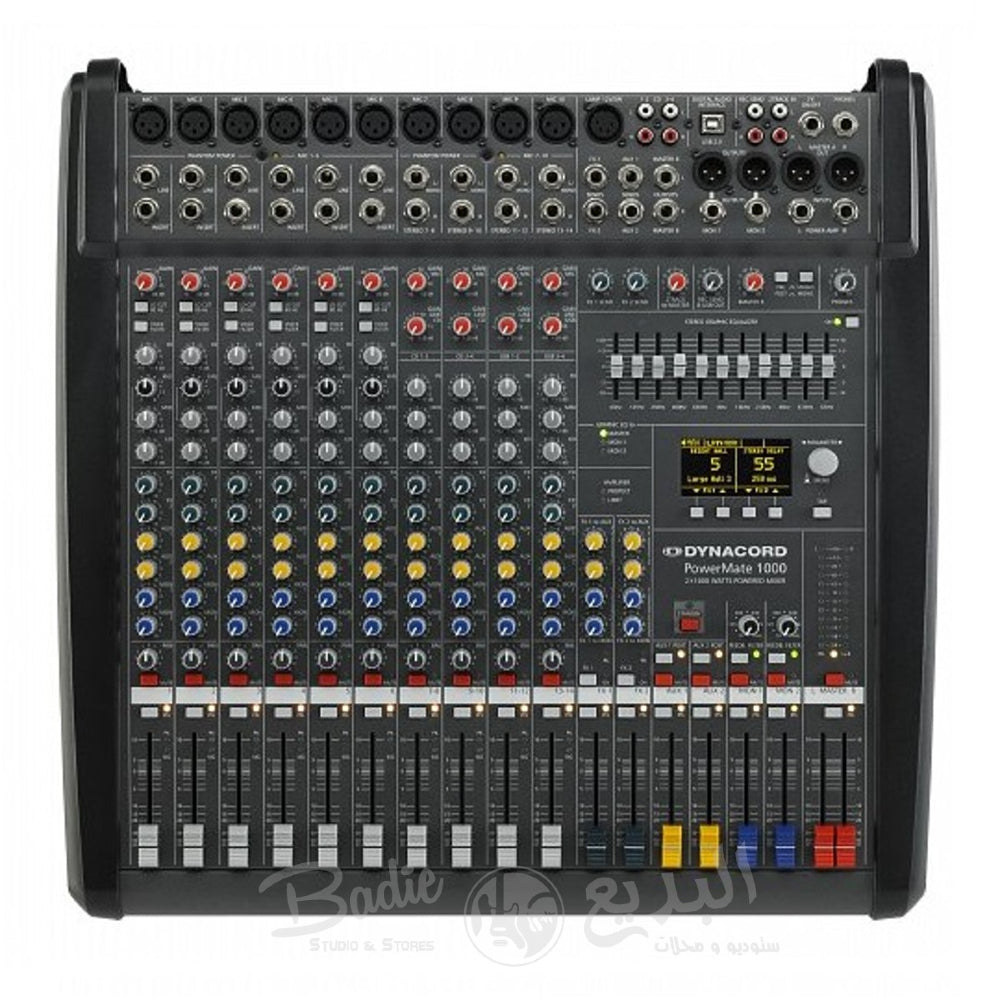

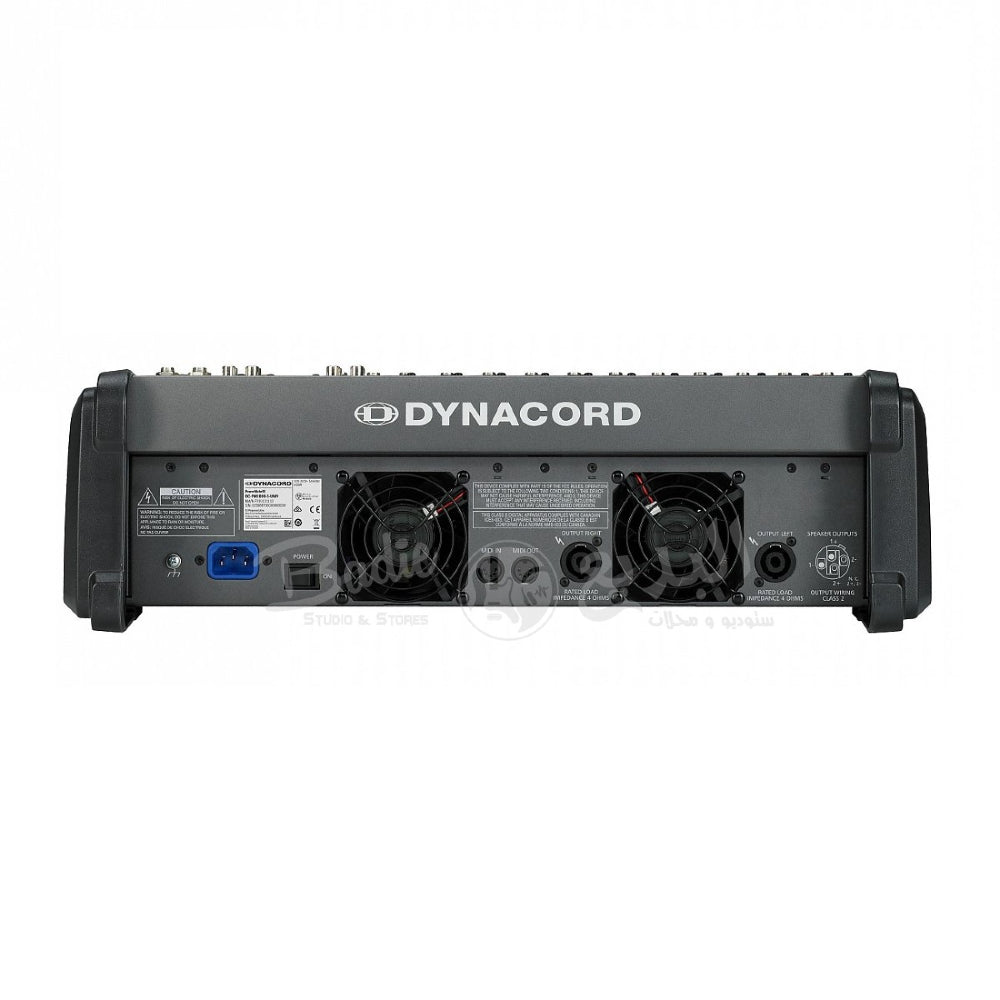

Dynacord PowerMate PM1000-3 Poweredmixer, 2x 1000 W / 4 Ohm

Third-generation success story: the PowerMate3! The current PowerMate generation features a multitude of innovations and optimizations. Despite a clear reduction in weight, it offers considerable gains in terms of both power amplifier output and features, as well as being more compact than ever before. The Dynacord PowerMate 1000-3 is supplied with a very robust plastic lid with an integrated handle, a highly innovative solution that offers optimal protection for the device as well as greater carrying comfort.

PowerMate with 2x 1000 watt RMS / 4 Ohm power

6 MIC/LINE inputs, 4 stereo MIC/LINE inputs, 6 AUX-busses

30% reduction in weight, more compact dimensions and > 50% less energy consumption compared to the previous models

editable effects

USB digital audio interface + MIDI

innovative transport and protection solution

the XLR microphone input is equipped with an extremely high quality, ultra-low noise, discrete preamp.

the +48V phantom power for condenser microphones can be switched in groups of six.

line input and channel insert are implemented as jack sockets gain can be controlled in the range 0-60 dB.

the switchable Lo Cut filter (80Hz, 18dB/oct) serves to eliminate low-frequency noise

a very typical DYNACORD feature is the asymmetrical Voicing Filter by means of which, if desired, the voice can be powerfully emphasized in the mix.

3-band semi-parametric equalizer makes it possible even for unpractised users to perform the requisite corrections swiftly and intuitively.

possible to mute each input channel individually and/or listen to its pre-fader signal Signal

Present and Peak LED for level control channel faders are dust-protected and offer not only excellent crosstalk attenuation but also a practice-optimized control characteristic.

all potentiometers and faders are high-quality components from ALPS.

2 of the 4 stereo inputs of each model are additionally equipped with cinch (RCA) sockets switched in parallel for CD or MP3 players.

2 other stereo inputs receive in addition the four channels of the digital audio interface USB 1-2 and USB 3-4

separate gain controls are provided for the stereo Line and Mic inputs to permit them to be used in parallel if desired.

3-band tone controls are provided and a Balance control replaces the PAN control found in the mono channel strips.

11-band stereo EQ can be routed to the Master channels or else to either or both of the Monitor Sends according to choice.

USB 2.0 port serves as a digital audio interface between the PowerMate and a PC or Mac.

the PowerMate also offers a fully-featured PC MIDI interface

rackmount kit RMK-1000-3 optionally available

dimensions (WxHxD): 483 x 135 x 443,7 mm (rack-mount), 510,5 x 164,5 x 571,5 mm (with cover)

weight: 12,5 kg,

with cover 14 kg

Manufacturer: Dynacord

Microphone Channels: 10

Stereo Channels: 4

RMS Output in Watt @ 4Ohm: 2x1000

Signal Processing: Analog

Power Mixer: Yes

Integrated Effects Processor: Yes

AUX Channels: 4

EQs: 3-Band

Low Cut: Yes

19"-capable: Yes, rack brackets available

Phantom Power: Yes

Integrated Power Adapter: Yes

USB Input: Yes

Talkback: No

Symmetrical Outputs: No

Integrated Audio Interface: No

Parametric Mid EQ: Yes

RJ45 Interface / Network: No

APP control possible: No

Weight (kg): 12.5
