Zoom LiveTrak L12 12-Channel Digital Mixer and Multitrack Recorder

12-channel Digital Mixer with 24-bit/96kHz 12-track Recorder, 5 Monitor Outputs, 3-band EQ, 16 Built-in Effects, and 14-in/4-out USB Audio Interface - Mac/PC/iOS

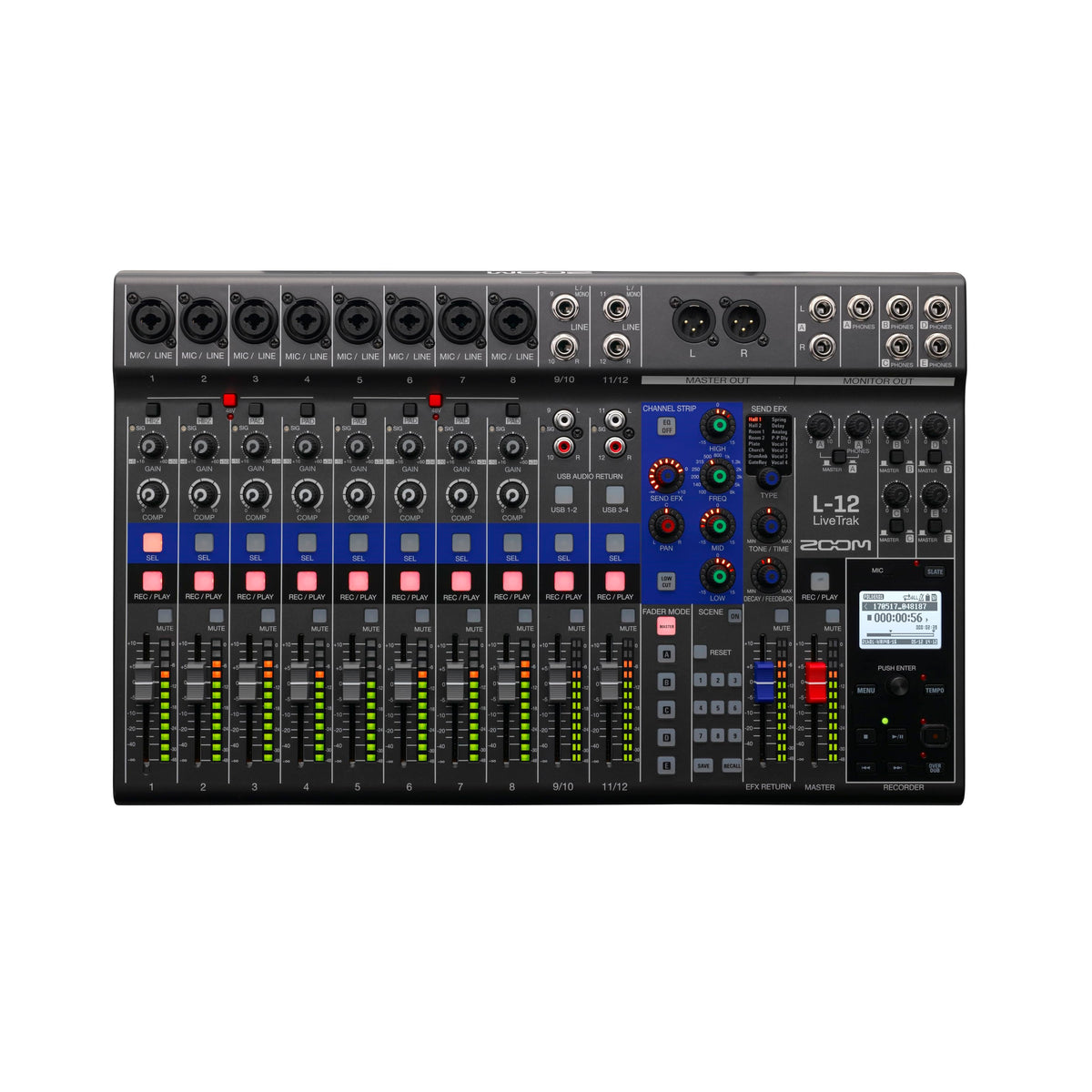

The highly flexible Zoom LiveTrak L-12 is a 12-channel digital mixer and multitrack recorder, well suited for live performances, studio recording , band rehearsals, podcasts, and more. The compact mixer features 8 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses . All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and a send FX for sending signal to the 16 built-in high-quality effects processor with a dedicated EFX Return channel.

12-channel digital mixer (8 mono/2 stereo)

14-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)

12-track 24-bit/96kHz recording directly to an SD card

Record up to 48kHz to a computer and an SD card simultaneously

Create customizable, savable headphone mixes for up to 5 band members

Complete your entire project on the mixer, or transfer all 12 discrete tracks to your DAW for editing and mixing

8 combo jacks accommodate both XLR and 1/4" connectors

8 great-sounding mic preamps with phantom power and +60dB of gain

Channels 1–2 offer hi-Z inputs for your electric guitar or bass

Channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices

Each channel features a 3-band mid-parametric EQ and 16 built-in effects

Channels 1–8 include a dedicated compressor for controlling dynamics

Channels 3–8 have a -26dB pad for capturing loud sources

Clear 12-segment LED metering for keeping an eye on your levels

Save up to 9 scenes and recall your custom settings automatically

Record automatically when the master fader detects a certain dB level

Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time

Built-in slate mic for recording comments or talk back

Onboard metronome for keeping the band in sync

What's in the Box

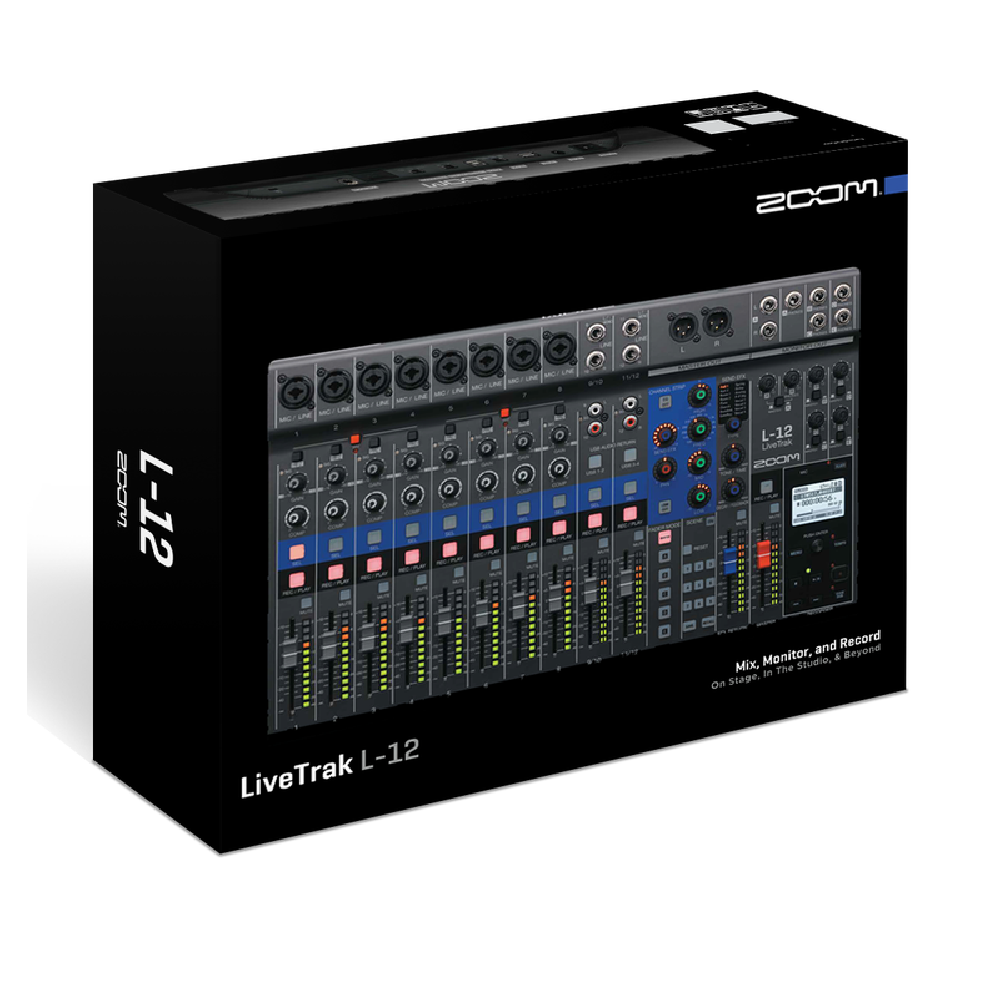

Included with the L-12

AC adapter (AD-19)

USB 2.0 cable

Quick Guide

Optional Accessory:

RKL-12 Rack mount adapter for LiveTrak L-12

FS-01 Momentary Footswitch

CBL-20 Carrying Bag
