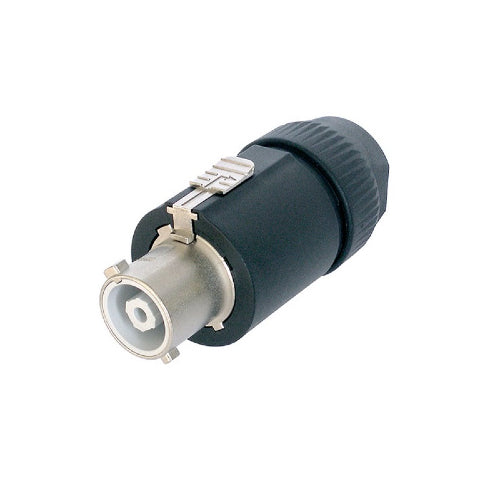

Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector

The Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector is a robust and reliable locking single phase AC appliance cable connector for high current capacity (32A). It is meant to be a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connector has contacts for phase, neutral, and protective earth (ground) conductor, and is rated for currents up to 32A and for voltages up to 250V.

250VAC, 32A single-phase (for ambient temperatures up to 35°C)

Pre-mating contact for protective earth

Fast and easy locking system to prevent unintentional disengagement

For cable with OD (Outer Diameter) ranging from 0.32 to 0.79" (8 to 20mm)

Wiring with screw-type terminals

For 0.1 to 0.24 sq. in (2.5 to 6 sq. mm) wires (14 to 10 AWG)

Good cable handling and protection

Very robust and reliable
