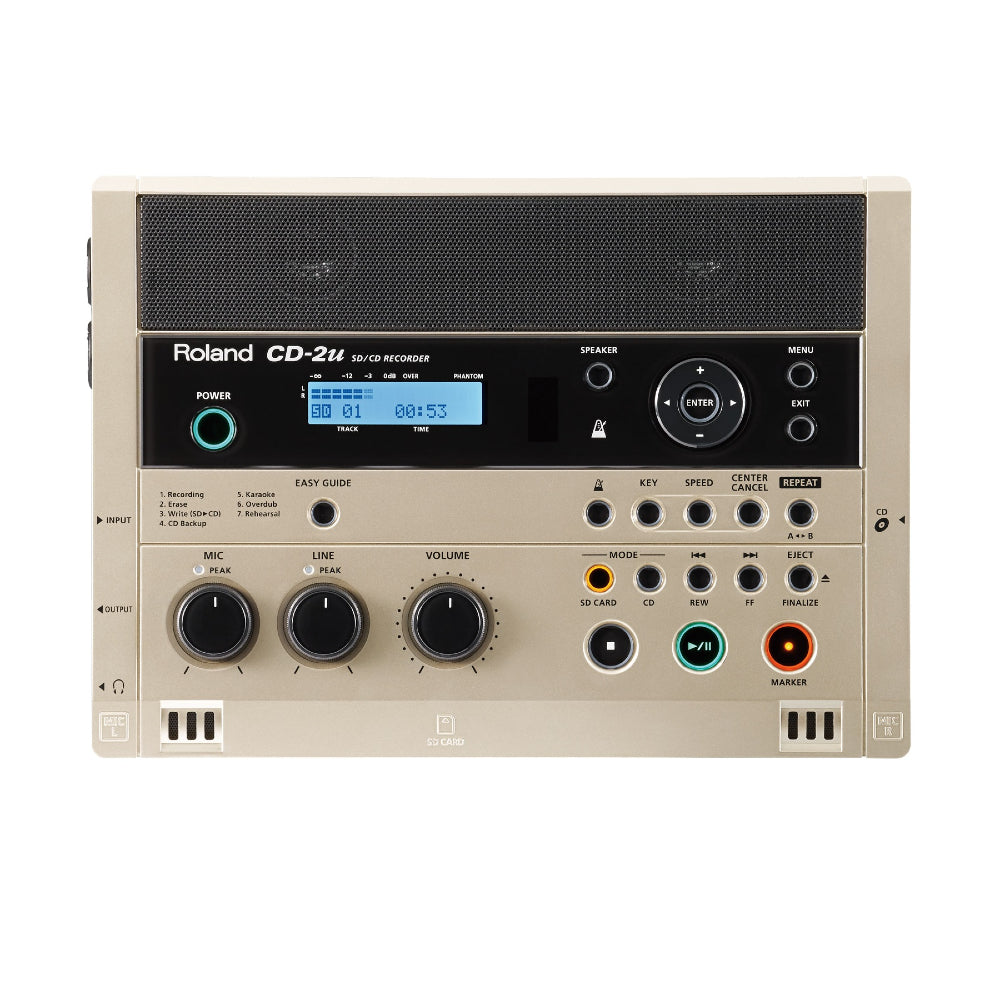

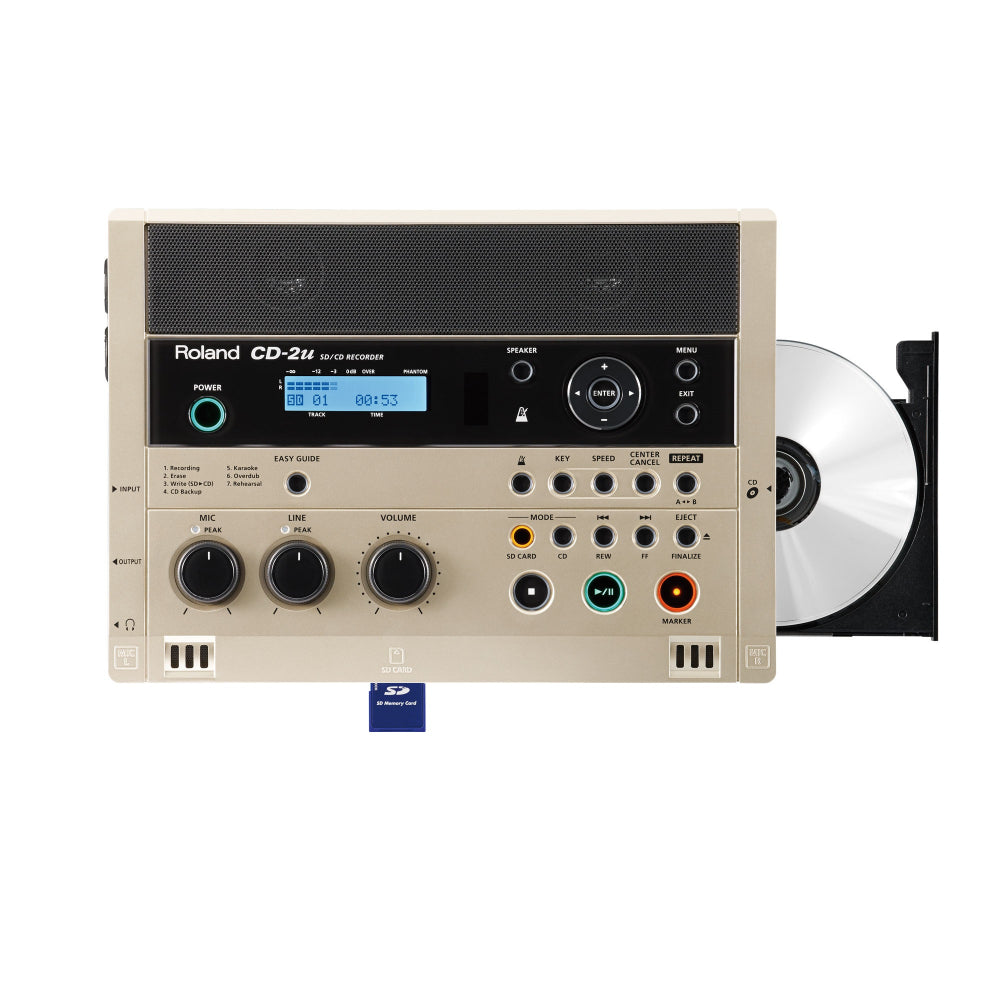

Roland CD-2U SD/CD Portable Recorder - /// Note: display unit Last Stock ///

The Roland CD-2U SD/CD Recorder sports a high-quality onboard stereo mic that gives you simple, “point-and-capture” recording direct to CD-R/RW or an SD card. The CD-2u features XLR, 1/4″, and RCA inputs for connecting other mics and equipment, as well as phantom power, built-in speakers, and even a phono equalizer. For effortless recording to today’s popular media, the compact and affordable Roland CD-2U SD/CD Recorder is a no-brainer.

Leave the computer at home—with the CD-2u SD/CD Recorder, it’s easier than ever to capture quality recordings and play and burn CDs anywhere! Record audio instantly with the built-in stereo mic, or connect your own external mics, electronic musical instruments, and other devices with professional results. Onboard are many training tools for lessons and practice, including CD and WAV audio playback, high-fidelity key and speed adjustment, improved Center Cancel, and the all-new Center Focus. Essentials such as a chromatic tuner and metronome are included as well. Ultra-compact and easy to use, the CD-2u is your perfect solution for playing, recording, and CD burning in a convenient mobile package.

Roland CD-2U SD/CD Recorder Features

-Simple recording direct to CD-R/RW or SD memory card
-All-in-one portable design, compact and stylish
-High-quality sound via built-in stereo microphone and speakers
-Center Cancel function, Center Focus function
-Rehearsal function aids users in setting optimal input level for recording
-Two XLR/14″ combo jacks with phantom power; Plug In Power microphone jack
-Stereo RCA Line/Phono-in jacks
-Powered by 6 AA batteries; AC adaptor included
-Easy-to-use interface with Easy Guide function

Tracks
2 tracks (stereo)
Sampling Frequency
44.1 kHz
Signal Processing
AD/DA conversion: 24 bits
Recording Mode
SD/SDHC Memory Card: WAV (44.1 kHz, 16 bits)
CD-R, CD-RW: Audio CD
Recording Media
SD Memory Card (supports 512 MB to 2 GB)
SDHC Memory Card (supports 4 GB to 16 GB)
CD-R
CD-RW
Recording Time (unit: min)
CD-R or CD-RW disc
650 MB: 74
700 MB: 80

SD Memory Card
512 MB: 47
1 GB: 94
2 GB: 189

SDHC Memory Card
4 GB: 377
8 GB: 755
16 GB: 1511

• Each recording time is approximate. The times may change depending on the card specifications.
• In case that there are plural files, the sum of recording time would be shorter than above.
• Maximum recording time of one song is 74 minutes.
  Recording Songs
  Up to 99 songs on a single SD/SDHC Memory Card, CD-R, or CD-RW
  Input/Output
  Audio Input
  Internal Stereo Microphones
  Internal Stereo Microphones

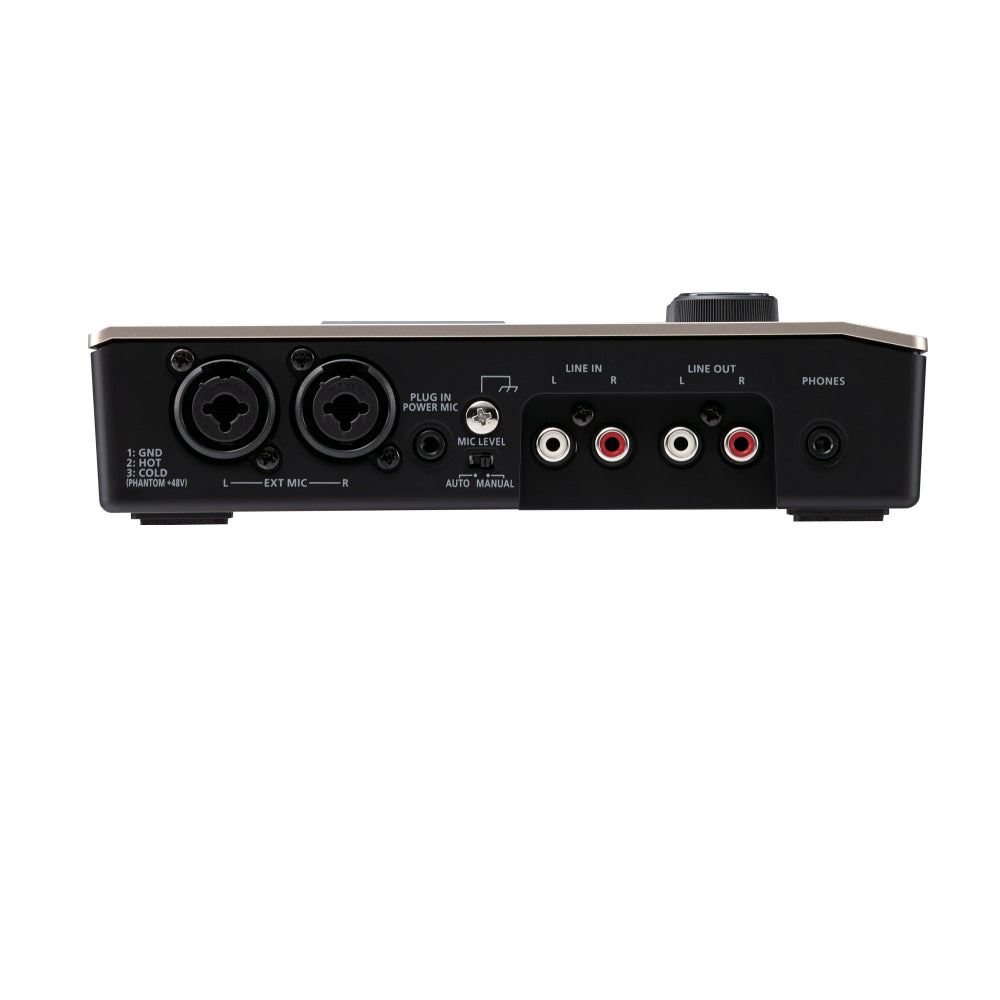

  EXT MIC (L, R) jacks: XLR type (balanced/phantom power DC 48 V, 8 mA Max.), 1/4-inch TRS phone type (balanced/unbalanced)
  PLUG IN POWER MIC jack: Stereo miniature phone type
  LINE IN (L, R) jacks: RCA phono type
  Frequency Response
  20 Hz to 20 kHz (+0 dB/-2 dB)
  Nominal Input Level (variable)
  EXT MIC (L, R) jacks: -51 to -8 dBu (common to XLR type and 1/4-inch phone type)
  PLUG IN POWER MIC jack: -51 to -13 dBu
  LINE IN (L, R) jacks: -24 to -4 dBu
  Input Impedance
  EXT MIC (L, R) jacks: 8 k ohms (common to XLR type and 1/4-inch phone type)
  PLUG IN POWER MIC jack : 10 k ohms
  LINE IN (L, R) jacks: 28 k ohms
  Output Impedance
  LINE OUT (L, R) jacks: 1 k ohm
  PHONES jack: 32 ohms
  Other
  Display
  16 characters, 2 lines (backlit LCD)
  Power Supply
  AC adaptor
  Alkaline battery (AA, LR6) x 6
  Rechargeable Ni-MH battery (HR6) x 6
  Current Draw
  1000 mA
• Expected battery life under continuous use
  Alkaline battery (AA, LR6): Approx. 5.5 hours
  Rechargeable Ni-MH battery (AA, HR6): Approx. 6 hours
  The time may vary according to usage conditions, batteries used, and type of SD memory card used.
  Accessories
  Owner's Manual
  Quick Start
  Remote controller (with battery CR2025)
  AC adaptor
  Power cord
  SD memory card
  SD card protector
  CD-R Disc (Blank media)
  Options (sold separately)
  Carrying Case: CB-CD2E
  Stereo Microphone: CS-15RS
  Stand: SS-PC1
  Size and Weight (excluding batteries and AC adaptor)
  Width
  278 mm
  11 inches
  Depth
  196 mm
  7-3/4 inches
  Height
  55 mm
  2-3/16 inches
  Weight
  1.4 kg
  3 lbs. 2 oz.
