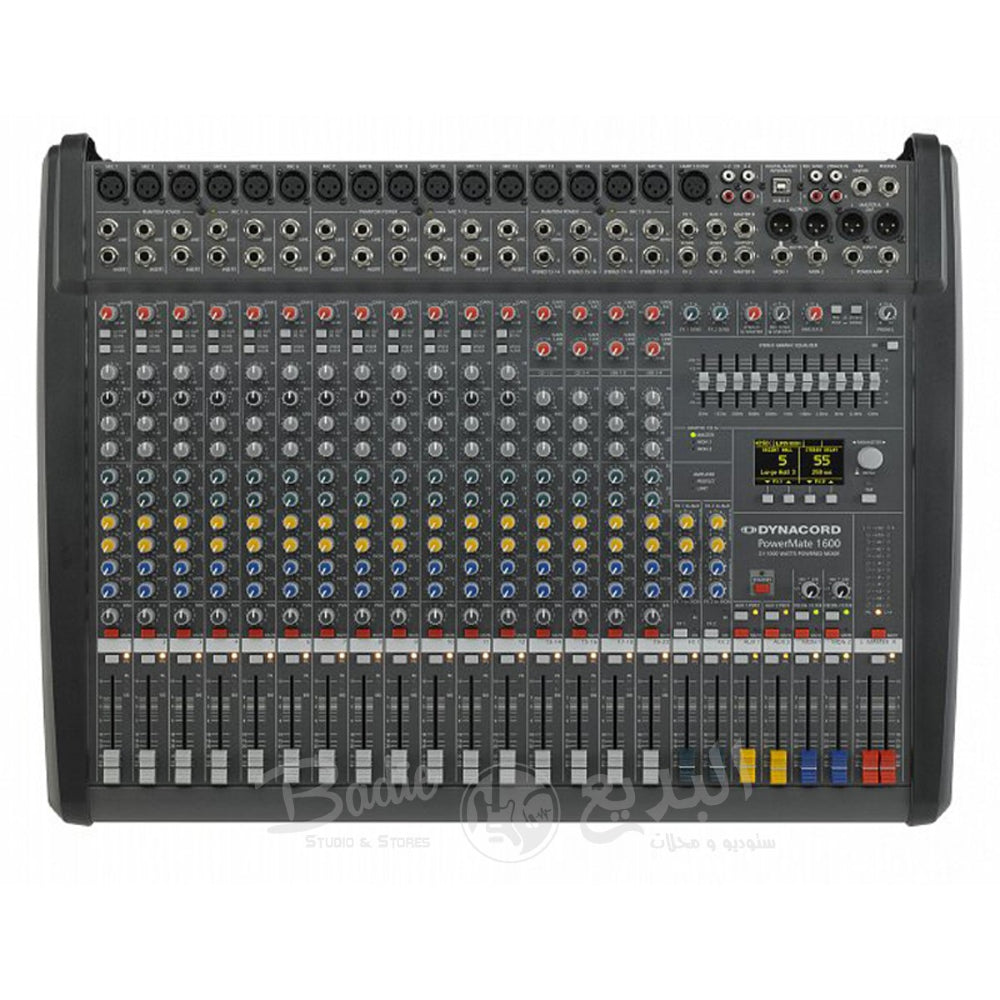

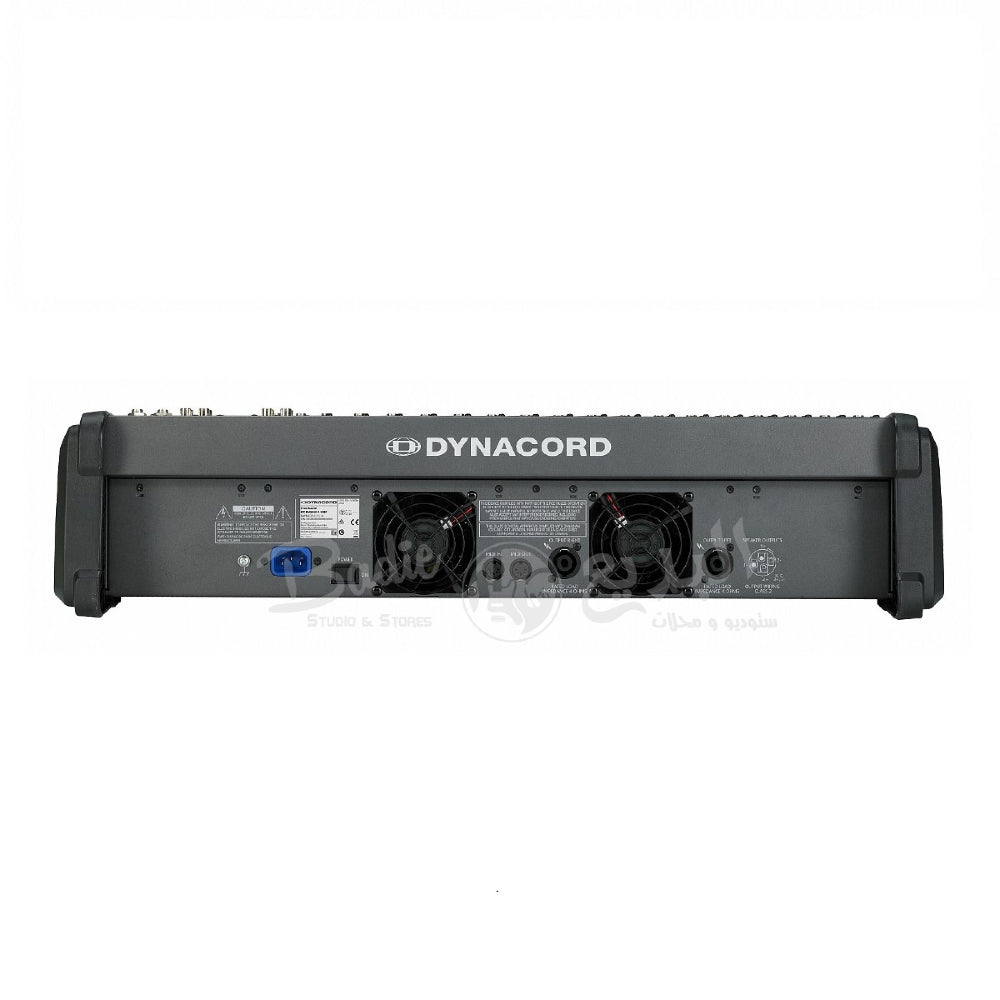

Dynacord PowerMate PM1600-3 Poweredmixer, 2x 1000 W / 4 Ohm

Third-generation success story: the PowerMate3! The current PowerMate generation features a multitude of innovations and optimizations. Despite a clear reduction in weight, it offers considerable gains in terms of both power amplifier output and features, as well as being more compact than ever before. The PowerMate 1600-3 is supplied with a very robust plastic lid with an integrated handle, a highly innovative solution that offers optimal protection for the device as well as greater carrying comfort.

power mixer with 2x 1000 watt RMS / 4 Ohm power

12 MIC/LINE inputs, 4 stereo MIC/LINE inputs, 6 AUX-busses

30% reduction in weight, more compact dimensions and >50% less energy consumption compared to the previous models

editable effects

USB digital audio interface + MIDI

Low-noise pre-amp the +48V phantom power for condenser microphones can be switched in groups of six.

line input and channel insert are implemented as jack sockets

gain can be controlled in the range 0-60 dB.

the switchable Lo Cut filter (80Hz, 18dB/oct) serves to eliminate low-frequency noise

a very typical DYNACORD feature is the asymmetrical Voicing Filter by means of which, if desired, the voice can be powerfully emphasized in the mix.

3-band semi-parametric equalizer makes it possible even for unpractised users to perform the requisite corrections swiftly and intuitively.

possible to mute each input channel individually and/or listen to its pre-fader signal

Signal Present and Peak LED for level control

channel fader is dust-protected and offer not only excellent crosstalk attenuation all potentiometers and faders are high-quality components from ALPS.

2 of the 4 stereo inputs of each model are additionally equipped with cinch (RCA) sockets switched in parallel for CD or MP3 players.

2 other stereo inputs receive in addition the four channels of the digital audio interface USB 1-2 and USB 3-4

separate gain controls are provided for the stereo Line and Mic inputs to permit them to be used in parallel if desired.

3-band tone controls are provided and a Balance control replaces the PAN control found in the mono channel strips.

11-band stereo EQ can be routed to the Master channels or else to either or both of the Monitor Sends according to choice.

4-pin XLR socket is provided for the connection of a standard 12V/5W gooseneck lamp.

USB 2.0 port serves as a digital audio interface between the PowerMate and a PC or Mac.

the PowerMate also offers a fully-featured PC MIDI

2 integrated stereo multieffects processors that work independently of one another, each offering 100 effects algorithms optimized for live performance, the most important parameters of which are editable.

dimensions (WxHxD): 663,5 x 164,5 x 571,5 (with cover)

weight: 15 kg, with cover 17 kg

Manufacturer: Dynacord

Microphone Channels: 16

Stereo Channels: 4

RMS Output in Watt @ 4Ohm: 2x1000

Signal Processing: Analog

Power Mixer: Yes

Integrated Effects Processor: Yes

AUX Channels: 4

EQs: 3-Band

Low Cut: Yes

19"-capable: No

Phantom Power: Yes

Integrated Power Adapter: Yes

USB Input: Yes

USB Output: Yes

Talkback: No

Integrated Audio Interface: Yes

Parametric Mid EQ: Yes

RJ45 Interface / Network: No

APP control possible: No

Weight (kg): 15
