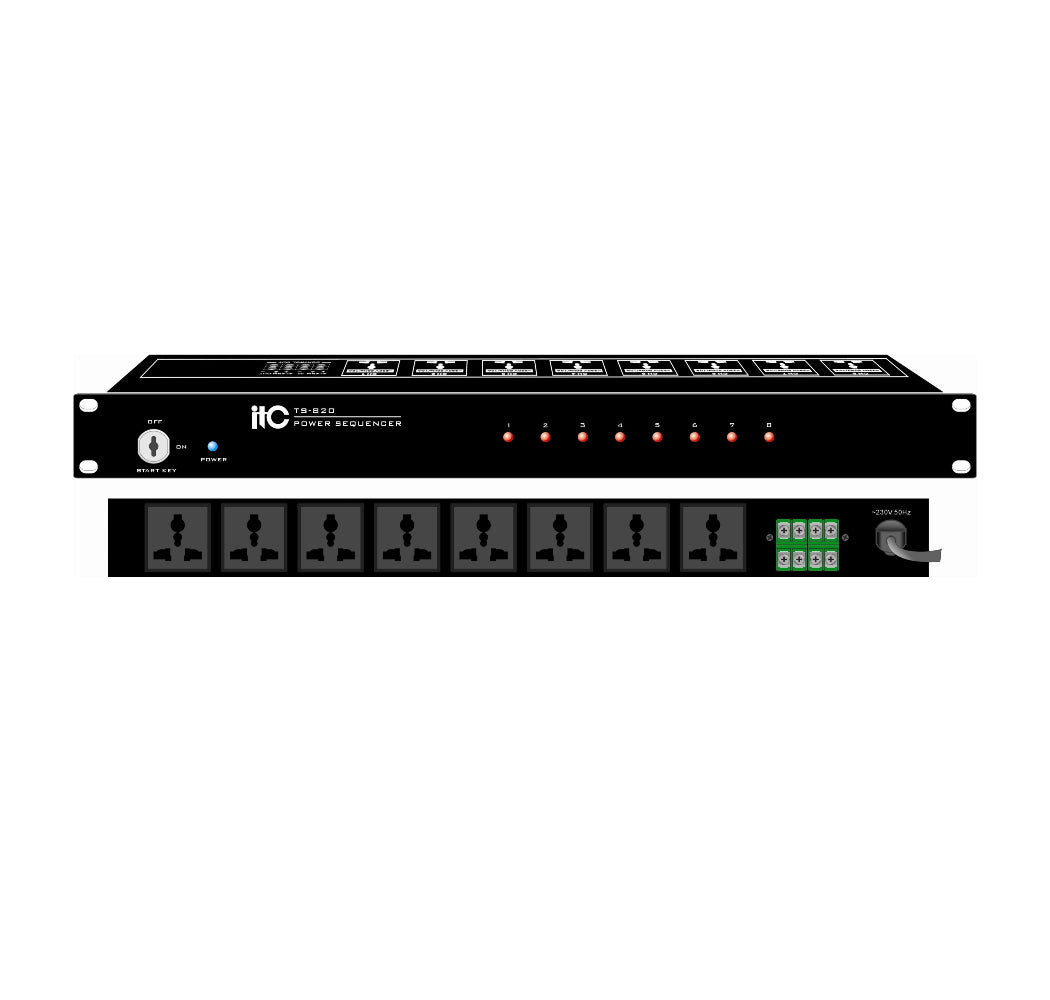

itc TS-820 8-Channel Power Sequencer

Channel: 8

Auxiliary power output: 10A

Max Current in per channel: 16A

Output Jack Standard:National standard (threepole)*6; American standard (three-pole)*2

Switch time interval: 2-second

Power supply: 180-240V

First choice of power management equipments in Public Radio system.

8 channels timing sequence ON/OFF.

Remote Control (Power On +24V DC Signal) 8 channels timing sequence ON/OFF, It's effective when the power switch lock is marking OFF.

When the remote control is effective at the same time control the rear panel ALARM port conduction, a cascade control ALARM function.

Single channel maximum load power is 2200W, all channels total power load is 6000 W.

Input connector: high power line code of power connector.

Output connector: utility power socket.
