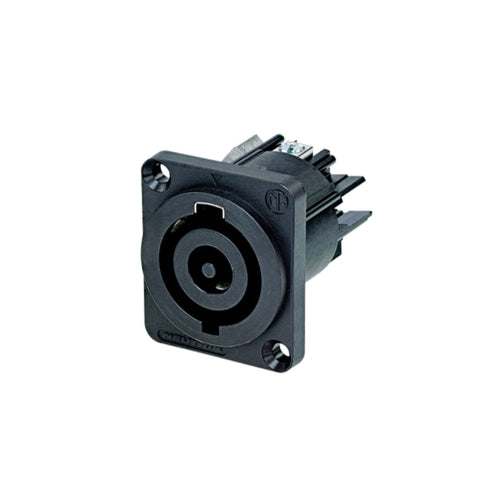

Neutrik NAC3MP-HC powerCON 32 A Male Power-In Chassis Mount

The Neutrik NAC3MP-HC powerCON 32 A Male Power-In Chassis Connector is a robust and reliable locking single phase AC appliance cable connector for high current capacity. It is conceived to be a non-standardized 3-pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. It comprises contacts for phase, neutral, and protective earth (ground) conductor, and is rated for currents up to 32A and for voltages up to 250V.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)

Premating contact for protective earth

Fast and easy locking system to prevent unintentional disengagement

Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)

Extremely robust and reliable

VDE, UL, cUL and JET approved

IEC 62368-1 compliant up to 4000 W
