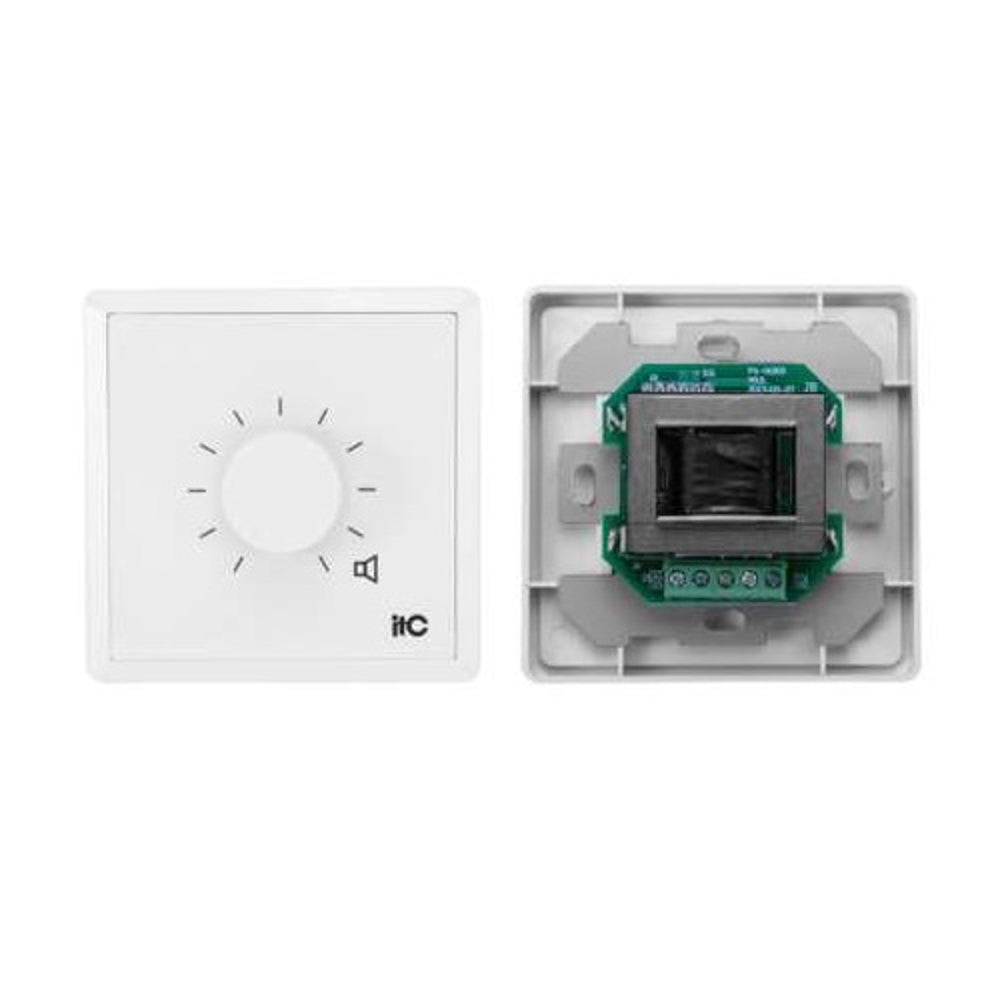

itc T-675F Volume Control 100W with Relay

Flush-mounted transformer regulator with relay (24V). High quality ABS enclosure. Recommend use with V-8P plastic box.

The Model with "F" with alarm cutting function;Note: Standard universal plastic bottom box (L 80× W 80×D 60mm) can be used for installation.

Model

T-671F

T-672F

T-673F

T-674F

T-675F

Input Power

6W

15W

30W

60W

100W

Control Mode

Constant voltage type

Signal Input

70~100V

Signal Output

0~100V

Speaker Type

Voltage Speaker

Frequency Response

80-16KHz

Attenuation

Transformer

Forced cutting

DC24V

Step

11 Steps

Finish

White

Mounting Size

80 x 80 x 60mm

Dimension

86.7 x 86.7 x 67.5mm

Weight

0.16Kg

0.22Kg

0.22Kg

0.22Kg

0.24Kg

Accessory

One pair screw of M4 x 25
