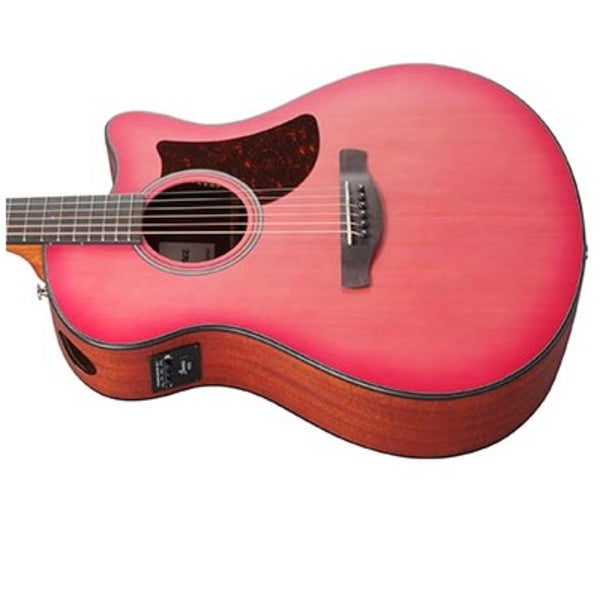

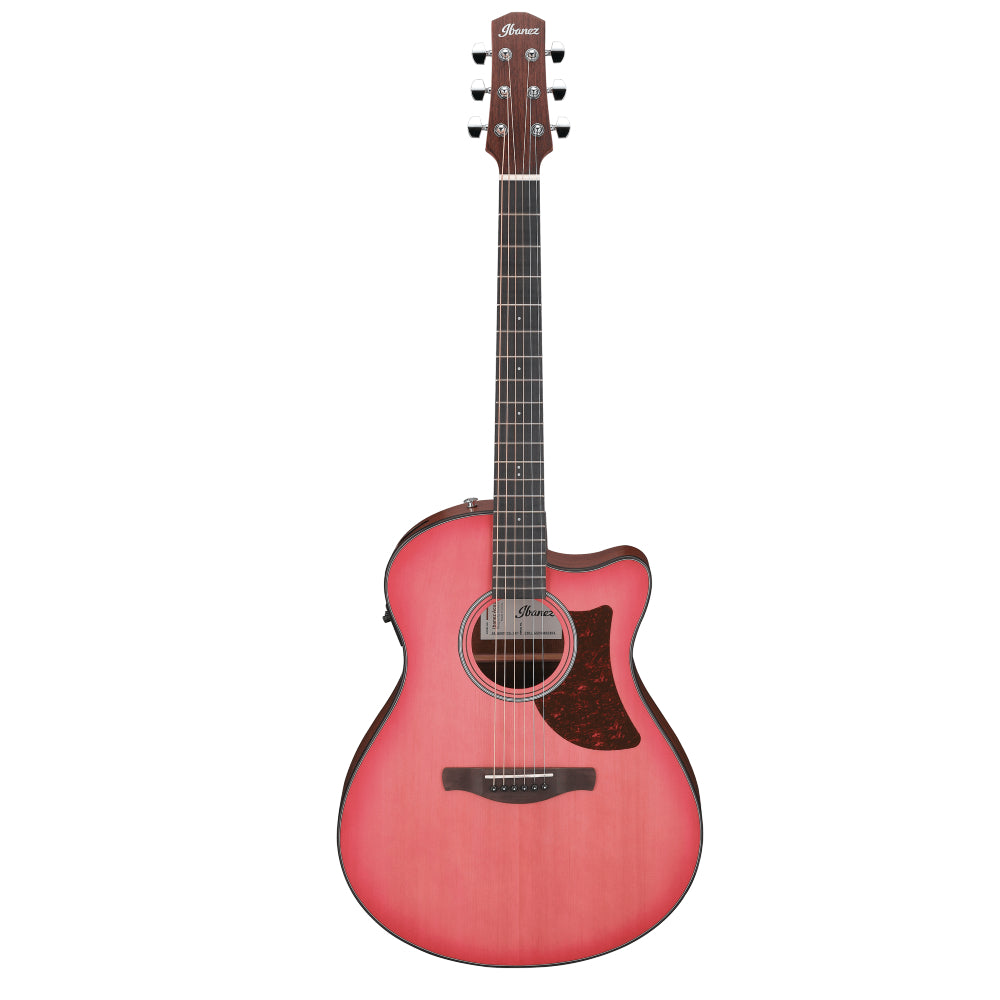

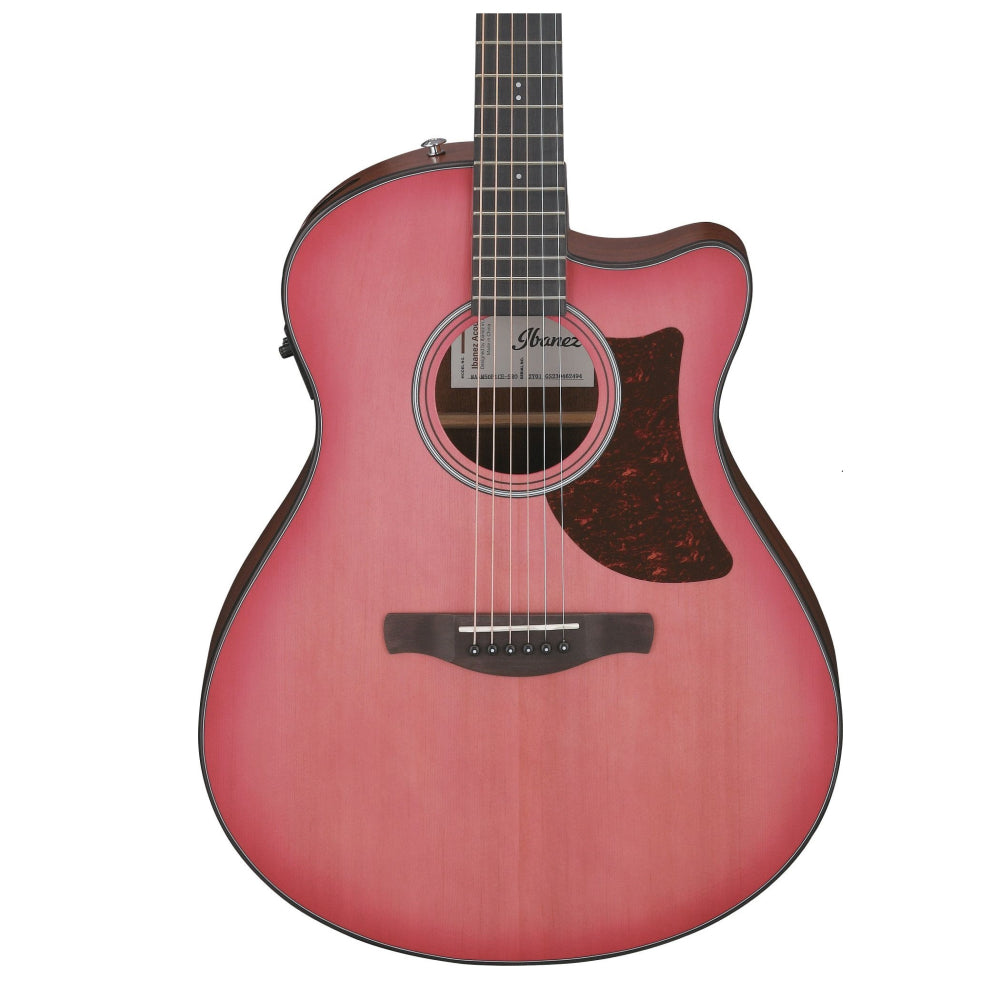

Ibanez AAM50CE-CRO 40.5" Inch Advanced Auditorium with Advanced Access Cutaway body Acoustic-electric Guitar - Coral Red Burst Open Pore

The Advanced Acoustic series represents a significant step forward in the long and storied tradition of the acoustic guitar. Designed from the ground up to deliver a richer and brighter, tone with an unprecedentedly wide dynamic range, these instruments offer a fully reimagined acoustic experience. The reinvented design achieves a superb, powerful sound, and thanks to the extensive consideration given to ergonomics, these instruments are extremely comfortable to play. The Advanced Acoustic series pushes the acoustic guitar to new heights, promising an exciting new experience for all players.

Features

A.I.R.port

Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.

Advanced Auditorium Body

With the concept of Advanced Acoustics - "Reimagining Acoustic Experience" in mind, we carefully designed the new body shape of the Advanced Auditorium, drawing on our research into the general Auditorium body shape. After many rounds of prototyping, the Advanced Auditorium body has a slightly wider waist, which has been moved slightly towards the neck. Thanks to these changes, this shape delivers a richer low mids and better body to weight balance, which conventional Auditorium bodies tend to lack.

X-M bracing for AAM series

After more than two years of trial and error, research, and prototyping, Ibanez developed its proprietary X-M bracing specifically for Advanced Auditorium guitar bodies to produce the ultimate sound for the stage and studio. The carefully designed scalloped X-M bracing, tone braces, and finger braces efficiently transmit string vibration from the bridge to the body. This bracing provides a wide dynamic range and excellent response. The mids are slightly scooped for better tonal balance, and the treble has the clarity of steel strings while retaining the warmth of nylon strings.

body shape

Advanced Auditorium with Advanced Access Cutway body

bracing

X-M Bracing

top

Solid Sitka Spruce top

back & sides

Sapele back & Sapele sides

neck

Low Oval Grip Okoume neck

fretboard

Purpleheart fretboard

bridge

Purpleheart bridge

body binding

Rounded body edge binding

inlay

White dot inlay

soundhole rosette

Black & White multi

tuning machine

Chrome Die-cast tuners (18:1 gear ratio)

number of frets

20

bridge pins

Ibanez Advantage™

strings

D'Addario® EXP16

string gauge

.012/.016/.024/.032/.042/.053

string space

11mm

factory tuning

1E,2B,3G,4D,5A,6E

pickup

Ibanez T-bar Undersaddle

preamp

Ibanez AEQ-TP2 preamp w/Onboard tuner

output jack

Balanced XLR & 1/4" outputs

battery

9Vx1
