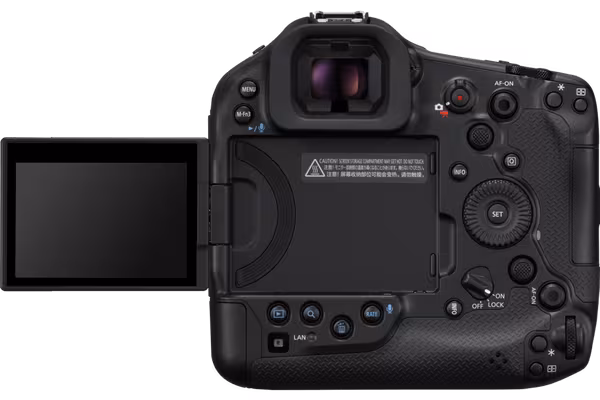

Canon EOS R1

Operating Environment
0 – 45 °C, 85% or less humidity
Dimensions (W x H x D)
Approx. 157.6×149.5×87.3 mm
Weight (Body Only)
Approx. 920 g (1115g with card and battery)

Image Sensor
Type
36 x 24 mm Full Frame back-illuminated stacked CMOS sensor
Effective Pixels
Approx. 24.2 megapixels
Total Pixels
Approx. 26.7 megapixels
Aspect Ratio
3:2
Low-Pass Filter
Built-in/Fixed
Sensor Cleaning
EOS integrated cleaning system
Colour Filter Type
RGB Primary Colour
Sensor Shift-IS
Yes, up to 8.5-Stops advantage at the center and 7.5-stops peripheral depending on the lens used1
Image Processor
Type
DIGIC Accelerator and DIGIC X
Lens
Lens Mount
RF/RF-S (EF and EF-S lenses can be attached using EF TO EOS R ADAPTER, EF TO EOS R ADAPTER WITH CONTROL RING, EF TO EOS R Drop in filter ADAPTER, EF-M lenses not compatible)
Focal Length
Equivalent to 1.0x the focal length of the lens with RF and EF lenses, 1.6x with EF-S and RF-S lenses.
Focusing
Type
Dual Pixel Intelligent AF
AF System / Points
Cross-type AF with area 100% horizontal and 100% vertical possible depending on the lens attached.2
AF Working Range
EV -7.5 – 21 (at 23°C & ISO100)3
AF Modes
One Shot
Servo AF
AF Point Selection
Automatic selection: 1053 (975 Movies) Available AF areas when automatically selected Manual selection: Spot AF Manual selection: 1-point AF (AF frame size can be changed) 4368 AF positions available stills (3354 Movies) Manual selection: AF point Expansion 4 points (up, down, left, right) Manual selection: AF point Expansion surrounding
Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 999 maximum focusing zones, where the width and hight is also adjustable)
Manual selection: Whole area AF
Manual selection: Spot AF (Whole area tracking servo AF OFF)
Manual selection: 1-point AF (Whole area tracking servo AF OFF)
Manual selection: AF point Expansion 4 points (up, down, left, right) (Whole area tracking servo AF OFF)
Manual selection: AF point Expansion surrounding (Whole area tracking servo AF OFF)
AF Tracking
Humans (Eyes, Face, Head, Upper half of body, Body), Animals (Dogs, Cats, Birds and Horses) or Vehicles (Racing cars or Motor bikes, Airplanes and Trains), Register People Priority (up to 10 x 10 registered people), Action Priority* 4(Football, Basketball, Volleyball, American Football(with Firmware v. 1.3.0 or later))5
AF Lock
Locked when shutter button is pressed halfway or AF ON6 is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
AF Assist Beam
Emitted by built in LED or optional dedicated Speedlite (flash)
Manual Focus
Selected on lens
